Midi excavator FM306

mediumnot specifiedconstruction

Overview

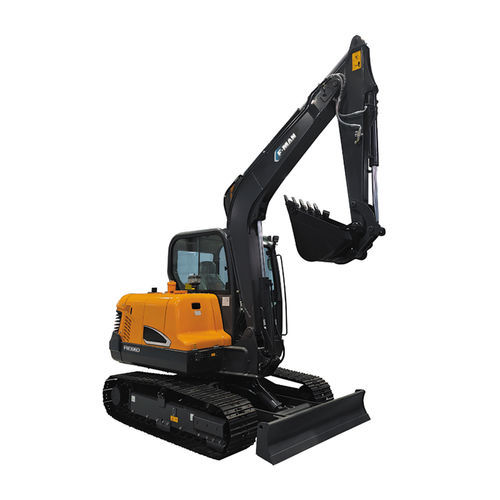

The FM306 is a mid-size hydraulic excavator designed for efficient medium-earthworks and continuous operation. With an operating weight of 5850 kg and a 0.25 m³ bucket, it is suitable for medium soils and common civil engineering tasks, offering balanced digging performance and site adaptability.

Engine and performance
Powered by the 4TNV94L engine with a rated power of 36.2 kW, the FM306 delivers stable continuous power and competitive fuel consumption for extended shifts. Key working values: max digging height 4980 mm, max digging depth 3812 mm, max digging radius 5980 mm.

Dimensions and maintenance
Compact overall dimensions (5827 × 2000 × 2563 mm) allow access on confined sites while providing straightforward access for routine inspection and maintenance to support uptime and ease of serviceability.

Technical specifications

• Model: FM306
• Operating weight: 5850 kg
• Bucket capacity: 0.25 m³
• Engine: 4TNV94L
• Rated power: 36.2 kW
• Max digging height: 4980 mm
• Max digging depth: 3812 mm
• Max digging radius: 5980 mm
• Overall dimensions (L×W×H): 5827 × 2000 × 2563 mm
• Note: marketing text on page also mentions a total machine weight of 4850 kg

Applications

• Medium earthworks and trenching
• Site preparation and utility installation
• Landscaping and municipal works
• Compact sites requiring accessibility and easy maintenance
