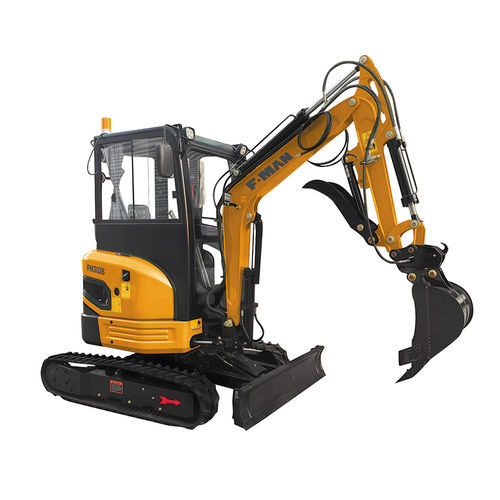

Mini-excavator FM3028

crawlerconstructioncompact

Product overview
The FMAN FM3028 is a 2.8 t class mini excavator engineered for municipal engineering, landscaping, light industrial tasks and small-scale earthworks. With an operating weight of 2800 kg and compact dimensions, the FM3028 delivers stable operation and high maneuverability in confined or complex sites. The 0.075 m³ bucket balances precision and cycle efficiency to improve productivity on tight jobsites.

Applications

• Municipal works: trenching, pipe laying and repair
• Landscaping and horticulture
• Light foundation works and utilities installation
• Site cleanup and material handling in restricted areas

Key features

• Compact footprint (4105 × 1520 × 2450 mm) for access in narrow sites
• 0.075 m³ bucket for controlled excavation and efficient cycle times
• Changchai 390 engine — rated 20 kW for reliable power and controlled fuel use
• Operating weight 2800 kg for stability during digging and transport
• Max. digging depth 2725 mm, max. digging height 3457 mm, max. radius 4452 mm for versatile tasks

Recommended models

• FM306 Excavator
• FM321 Excavator
• FM353 Excavator

Main technical parameters

• Model: FM3028
• Class: 2.8 t mini crawler excavator
• Operating weight: 2800 kg
• Bucket capacity: 0.075 m³
• Engine: Changchai 390
• Rated power: 20 kW
• Max. digging height: 3457 mm
• Max. digging depth: 2725 mm
• Max. digging radius: 4452 mm
• Overall dimensions (L×W×H): 4105 × 1520 × 2450 mm
