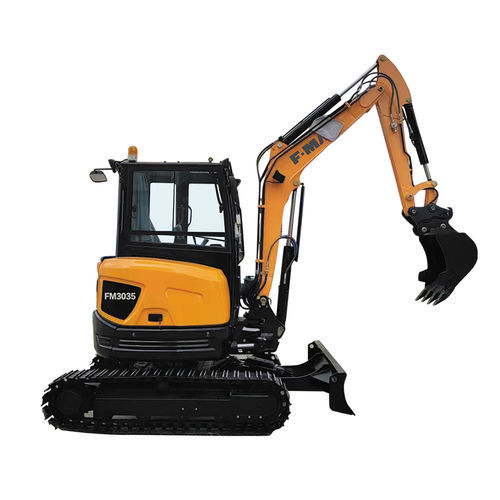

Mini-excavator FM3035

crawlerdieselconstruction

Overview
The FMAN FM3035 mini excavator is a 3.8-ton compact crawler designed for continuous operation in municipal engineering, foundation works, landscaping and medium earthmoving tasks. Its reinforced structure and balanced dimensions provide stability and operational safety across varied site conditions.

Key features

• Compact 3.8 t crawler excavator suitable for municipal engineering, foundation construction, landscaping and medium earthmoving.
• Bucket capacity: 0.11 m³ to improve digging efficiency and increase output per cycle.
• Powered by Kubota 1703 engine delivering 18.2 kW for consistent and fuel-efficient performance.
• Extended reach with max digging height 4815 mm, max digging depth 2760 mm and max digging radius 5445 mm for trenching, foundation work and loading.
• Overall dimensions 4705×1710×2585 mm balance on-site capability with transport and maintenance ease.

Main Technical Parameters (table)
Main Technical Parameters | UNIT | FM3035
Operating Weight | kg | 3800
Bucket Capacity | m³ | 0.11
Engine | | Kubota 1703
Rated power | kW | 18.2
Max. Digging Height | mm | 4815
Max. Digging Depth | mm | 2760
Max. Digging Radius | mm | 5445
Maximum overall dimensions (Length × Width × Height) | mm | 4705×1710×2585

Technical specifications

• Operating Weight: 3800 kg
• Bucket Capacity: 0.11 m³
• Engine Model: Kubota 1703
• Rated Power: 18.2 kW
• Max. Digging Height: 4815 mm
• Max. Digging Depth: 2760 mm
• Max. Digging Radius: 5445 mm
• Overall Dimensions (L×W×H): 4705 × 1710 × 2585 mm
