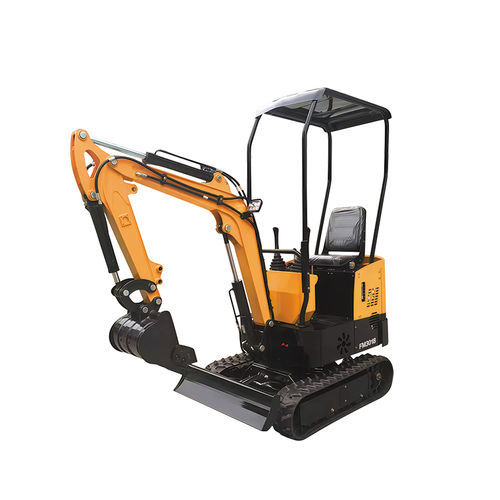

Mini-excavator FM3018

not specifiedconstructioncompact

Product overview
The FM3018 is a compact mini excavator designed for municipal engineering, landscaping, agricultural tasks and construction in confined spaces. With an operating weight of 1450 kg and a standard bucket of 0.04 m³, it provides precise excavation control and easy access to indoor areas, residential yards and narrow sites.

Performance & powertrain
Equipped with the Laidong385 engine (rated power 18.1 kW), the FM3018 delivers stable output and efficient fuel consumption for extended operation. Key performance figures: max digging depth 2205 mm, max digging radius 3500 mm and max digging height 2900 mm.

Dimensions & transport
Overall dimensions are 3325 × 1120 × 2292 mm, facilitating transport and storage and reducing handling costs—suitable for rental fleets and small-scale construction tasks.

Main technical parameters

• Operating weight: 1450 kg
• Bucket capacity: 0.04 m³
• Engine: Laidong385
• Rated power: 18.1 kW
• Max digging height: 2900 mm
• Max digging depth: 2205 mm
• Max digging radius: 3500 mm
• Overall dimensions (L×W×H): 3325 × 1120 × 2292 mm

Applications

• Municipal works, landscaping and small civil jobs
• Rental fleets and short-term site assignments
• Agricultural tasks and confined-space operations
