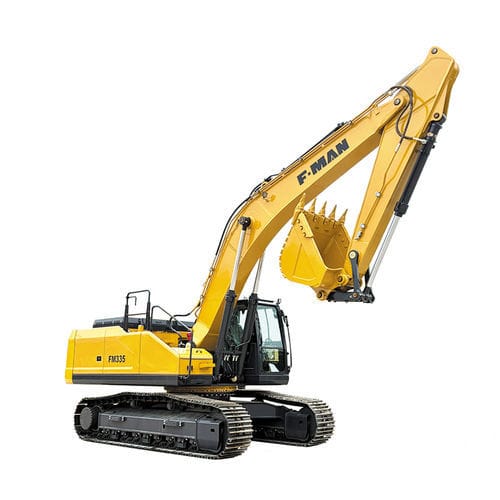

Medium excavator FM335

largecrawlerdiesel

Overview
The FMAN FM335 crawler excavator is a 35-ton class medium-to-large hydraulic excavator designed for high‑intensity earthmoving and heavy‑duty applications. It is equipped with a 1.6–1.8 m³ bucket, an ISUZU engine tuned for continuous heavy operation, and a professionally matched hydraulic system for fast response and smooth combined movements. Reinforced structural components and a heavy‑duty chassis increase rigidity and durability while the machine supports multiple work attachments and auxiliary equipment.

Main features

• Operating class: 35‑ton class medium‑to‑large crawler excavator
• Operating weight: 35,600 kg
• Bucket capacity: 1.6–1.8 m³
• Engine: ISUZU engine (matched for fuel efficiency and continuous operation)
• Hydraulic system: optimized matching with engine for fast response and smooth combined movements
• Heavy‑duty chassis and reinforced structural components for improved rigidity and durability
• Supports multiple work attachments and auxiliary equipment

Dimensions & performance (table values)
Total length (mm): 11,184
Overall width (mm): 3,190
Total height (boom top) (mm): 3,180
Overall height (top of cab) (mm): 3,165
Counterweight ground clearance (mm): 1,190
Minimum ground clearance (mm): 498
Tail turning radius (mm): 3,525
Track grounding length (mm): 4,030
Track length (mm): 4,945
Rail gauge (mm): 2,590
Track width (mm): 3,190
Track shoe width (mm): 600
Turntable width (mm): 2,995
Arm length (mm): 3,185
Boom length (mm): 6,470
Maximum excavation height (mm): 10,200
Maximum unloading height (mm): 7,135
Maximum excavation depth (mm): 7,370
Maximum vertical wall excavation depth (mm): 6,380
Maximum excavation distance of 2.5m horizontal surface (mm): 7,190
Maximum excavation distance (mm): 11,100
Maximum excavation distance on the ground (mm): 10,910
Minimum turning radius (mm): 4,265
Maximum height at minimum turning radius (mm): 8,500
Distance from the center of rotation to the rear end (mm): 3,525
Track tooth thickness (mm): 30
Counterweight height (mm): 2,627
Grounding length (during transportation) (mm): 5,875

Application & suitability
Designed for large‑volume excavation and loading operations. Recommended for mining, infrastructure construction and large‑scale municipal engineering. The combination of a reliable ISUZU power unit and optimized hydraulic matching provides efficiency for long‑term continuous operation and precise control in heavy applications.

Technical specifications

• Model: FM335
• Operating weight: 35,600 kg
• Bucket capacity: 1.6–1.8 m³
• Engine brand: ISUZU
• Maximum digging depth: 7,370 mm
• Maximum digging height: 10,200 mm
• Boom length: 6,470 mm
• Arm length: 3,185 mm
• Track shoe width: 600 mm
• Track width: 3,190 mm
• Tail turning radius: 3,525 mm
• Recommended application: mining, infrastructure, municipal engineering
