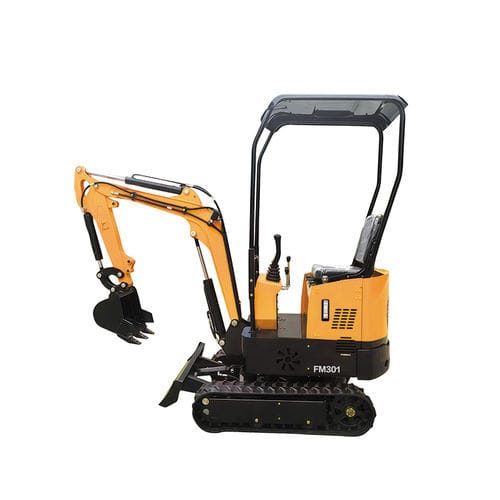

Mini-excavator FM301

crawlerconstructiondemolition

Overview
The FMAN FM301 mini crawler excavator is a compact machine engineered for confined spaces and precision earthworks. With an operating weight of 850 kg and a 0.017 m³ bucket, it combines easy transportability with stable light-duty digging performance. The unit is powered by a KOOP engine rated at 7.6 kW.

Performance and structure
The FM301 delivers a maximum digging height of 2,100 mm, a maximum digging depth of 1,345 mm and a maximum digging radius of 2,600 mm. Its high-strength steel structure and a mature hydraulic system provide precise, smooth movements and consistent onsite productivity. The design favors low energy consumption and straightforward maintenance to minimize operating costs.

Transport, maintenance and applications
Overall dimensions of 2,825 × 945 × 2,220 mm enable simple transport and access to narrow sites. The machine’s maintenance layout is designed for quick service operations and reduced downtime. Typical applications include trenching, foundation preparation, localized demolition, municipal works, landscaping, farm maintenance and pipeline excavation.

Key features

• Compact crawler design for confined spaces and easy transport
• KOOP engine, rated 7.6 kW for efficient light-duty operation
• High-strength steel frame and proven hydraulic system for precise control
• Simple maintenance layout and low fuel consumption to reduce TCO
• Suitable for trenching, foundations, landscaping and interior demolition

Technical specifications

• Model: FM301
• Operating weight: 850 kg
• Bucket capacity: 0.017 m³
• Engine: KOOP
• Rated power: 7.6 kW
• Max. digging height: 2,100 mm
• Max. digging depth: 1,345 mm
• Max. digging radius: 2,600 mm
• Overall dimensions (L × W × H): 2,825 × 945 × 2,220 mm
