Continuous laser module

continuous waveCWfiber

Product overview
YOEC single-frequency narrow-linewidth laser module provides a coherent single-frequency output for high-precision photonics applications requiring stable wavelength, ultra-narrow linewidth and low phase noise. Typical performance includes linewidth <3 kHz (typ. 2 kHz), center wavelength 1550.12 nm (tunable 1530–1565 nm, ITU-T ±40 pm) and typical output power 13 dBm (CW). Compact, low-power design and multiple packaging options enable straightforward integration into sensing, communication and research systems.

Applications

• Fiber optic hydrophone systems
• Free-space optical communication
• Distributed fiber sensing

Features

• Ultra-narrow linewidth (<3 kHz, typ. 2 kHz)
• High frequency and wavelength stability
• Low phase noise and low RIN
• Compact size and low power consumption
• High reliability for long-term operation

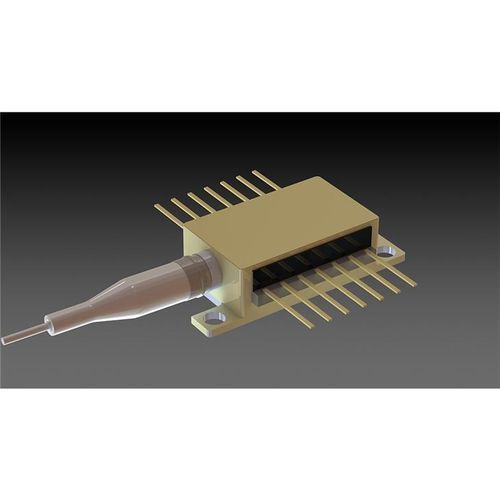

• Multiple package options: standard module, 14-pin butterfly, nano package

Typical specifications

• Output Power (P): Min 10 dBm — Typ 13 dBm — CW
• Center Wavelength (λ): Range 1530–1565 nm — Typ 1550.12 nm — ITU-T ±40 pm
• Laser Linewidth (Δν): Typ 2 kHz — <3 kHz (β-line method)
• Side Mode Suppression Ratio (SMSR): Typ 60 dB
• Polarization Extinction Ratio (PER): Typ 20 dB
• Frequency Noise (FN): Typ 1000 Hz²/Hz — offset > 1 kHz
• Relative Intensity Noise (RIN): Typ -140 dBc/Hz — offset > 10 kHz
• Optical Isolation (ISO): Typ 40 dB

Packaging and integration

• Packaging options: standard module, 14-pin butterfly, nano package
• Designed for integration into fiber and free-space optical systems
• Suitable for coherent detection, atomic physics experiments and quantum technology applications
