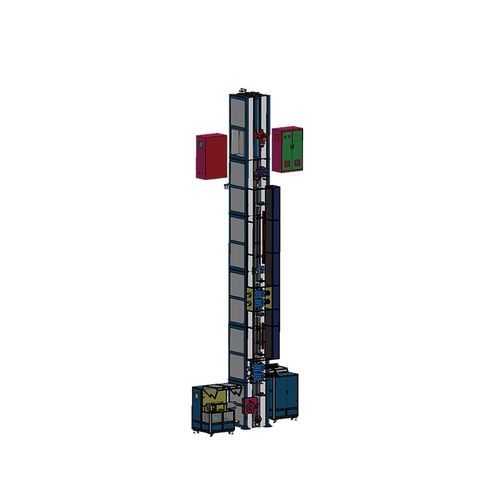

Fiber optic drawing frame

Drawing tower is an automatic control equipment which integrates light, machinery, electricity, gas. Through the drawing tower, under the protection of argon/helium atmosphere, the glass preform rod is heated & softened locally by heating furnace, and the fiber is drawn by roller drawing method. Drawing tower is an automatic control equipment which integrates light, machinery, electricity, gas. Through the drawing tower, under the protection of argon/helium atmosphere, the glass preform rod is heated & softened locally by heating furnace, and the fiber is drawn by roller drawing method. It consists of mechanical system, electrical system, software control system, gas system, waterway system and so on. Characteristics ● With the self-developed software with strong scalability, it can be automatically remote-controlled with simple operation. ● High-precision/high-stability servo motor for mechanical motion control. ● Precise control of fiber outer-diameter & tension with high-resolution caliper & tension meter. ● Precise control of gas pressure & flow with high-quality precision pneumatic components and mass flow controller. ● Precise control of water flow with high-precision pressure regulating valve. ● The upper computer adopts industrial control computer, and the lower computer adopts PLC, which can automatically draw equal-diameter fibers. Specifications ● Preform rod specification: ≤φ50mm ● Drawing speed: 1 ~ 700m/min ● Drawing temperature: 1000～2500 °C ● Drawing temperature accuracy: ±1℃ ● Pre-coated outer diameter: φ0.08～φ1mm ● Drawing outer diameter deviation: ±1% ● Tower height: 12.5m ● Total weight: 6.5T
