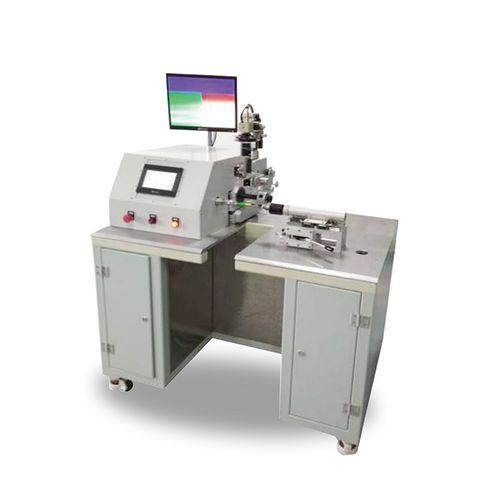

Shaping machine Optical Fiber Arranger

After years of research, according to the characteristics of unsymmetrical winding procedure & method, Optical fiber arranger has been developed as a stable and efficient optical fiber coil winding equipment is continuously improved in structure and function, It is suitable for a variety of unsymmetrical winding optical fiber coil products with different specifications. The equipment has been updated for many generations and designed in engineering. It is easy to operate, the optical fiber tension and fiber arrangement control precision temperature, and the whole machine has a high degree of automation. At present, this model is widely used in the winding of hydrophone optical fiber coil products. Product Characteristics 1.Unsymmetrical winding method; 2.Automatic gluing; 3.Closed-loop control of optical fiber tension; 4.Equipped with image enlargement and display system; 5.Precision servo motion control system ensures fiber arrangement accuracy; 6.Rich functions, single operation, improve efficiency; 7.Automatically record all kinds of data, such as tension, speed, length, turns, layers, etc.
