Performance test system HD35

laboratoryportablecompact

Product Description

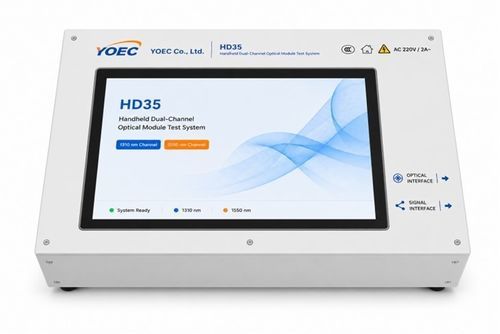

The HD35 Handheld Dual-Channel Optical Module Test System is YOEC's third-generation portable testing platform designed for fiber optic gyroscope (FOG) optical modules and fiber coil assemblies. Combining a closed-loop FOG architecture with dual wavelengths (1310 nm and 1550 nm), HD35 delivers precise bias measurement, angular rate output and integrated performance evaluation. The unit accepts direct connector or fusion-splice connection to the fiber coil module and enables immediate testing without complex calibration. The system integrates a compact industrial computer with Windows 11 and dedicated test software, multiple optical/electrical interfaces and a lightweight handheld enclosure optimized for laboratory, production and field use.

Key Advantages

• High-precision bias measurement down to 0.0005°/h (1550 nm channel).
• Dual-wavelength test capability (1310 nm & 1550 nm) for broad fiber coil compatibility.
• Portable handheld design for easy transport and on-site testing.
• Plug-and-play operation: fast setup with no complex calibration required.
• Supports fiber coil lengths from 200 m to 5000 m depending on wavelength.
• Stable electronic and optical design for repeatable long-term measurements.

Applications

• Bias and zero-drift testing of fiber coil modules.
• Temperature performance and environmental qualification tests.
• Magnetic field sensitivity assessments.
• Vibration and shock testing for mechanical robustness verification.
• Production quality control and incoming/outgoing inspection.
• Research & development and prototype validation of FOG designs.

Working Principle
The HD35 uses a closed-loop fiber optic gyroscope architecture to evaluate fiber coil modules. When the test coil is connected to the instrument, the platform drives the optical/electronic system to generate angular rate outputs and to measure parameters such as bias stability, temperature sensitivity and environmental performance. The dual-channel design lets operators select 1310 nm or 1550 nm according to coil characteristics to optimize measurement accuracy and flexibility.

Typical Specifications (table)
Parameter: Specification
Dimensions: 340 × 265 × 50 mm
Weight: 700 g
Operating Temperature: -10°C to +60°C
Power Supply: 110–250 VAC, 50 Hz
Rated Power Consumption: 30 W
Number of Channels: 2 (1310 nm and 1550 nm)
Test Error (1310 nm Channel): ≤ 0.005°/h
Test Error (1550 nm Channel): ≤ 0.0005°/h
Measurable Fiber Coil Length (1310 nm Channel): 200–1500 m
Measurable Fiber Coil Length (1550 nm Channel): 700–5000 m
Measurable Y-Waveguide Half-Wave Voltage: 3–4.4 V
Fiber Coil Length Configuration Time: ≤ 10 s

Technical Specifications

• Model: HD35 handheld platform
• Bias measurement accuracy: better than 0.0005°/h (1550 nm channel)
• Channels: dual-channel (1310 nm & 1550 nm)
• Dimensions: 340 × 265 × 50 mm
• Weight: 700 g
• Operating temperature range: -10°C to +60°C
• Power supply: 110–250 VAC, 50 Hz
• Power consumption: 30 W
• Measurable fiber coil length ranges: 200–1500 m (1310 nm), 700–5000 m (1550 nm)
• Y-waveguide half-wave voltage: 3–4.4 V
• Fiber coil length configuration time: ≤ 10 s
