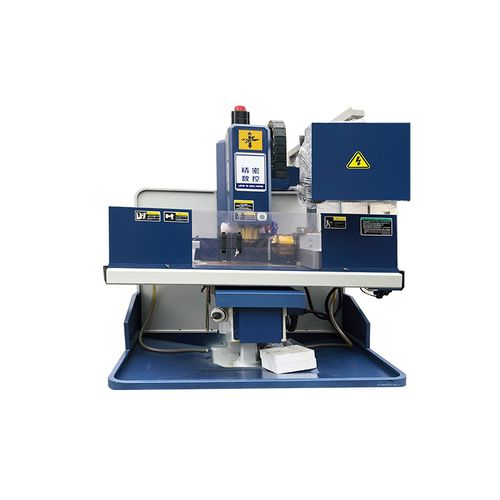

Shaping grinding polishing machine NC Quartz Tube and Rod Shaping Grinder

CNCquartz glass rod

Numerical control quartz tube and rod shaping grinder is a new generation of grinder system specially developed for glass rod shaping and grinding process in optical fiber industry. It adopts the special smooth rod grinding tool developed by our company, which can realize the grinding process of the outer circle of Shi Ying glass bar with diameter not more than φ 50 mm and length not more than 950mm, including outer circle grinding, surface grinding and other technological steps, and can fully automatically complete the processing requirements of quadrilateral, hexagonal, octagonal and other polygons. Product Characteristic 1.Four-axis numerical control system, fully automatic processing, easy to operate; 2.CNC cast iron bed, mature structure, stable and reliable; 3.High-precision lead screw, with heavy-duty guide rail, forced lubrication to ensure the accuracy of the machine life; 4.BT40 spindle with high speed, high precision and high rigidity, stable operation and anti-knife vibration; 5.Lubrication system, water cooling system and semi-enclosed structure are standard;
