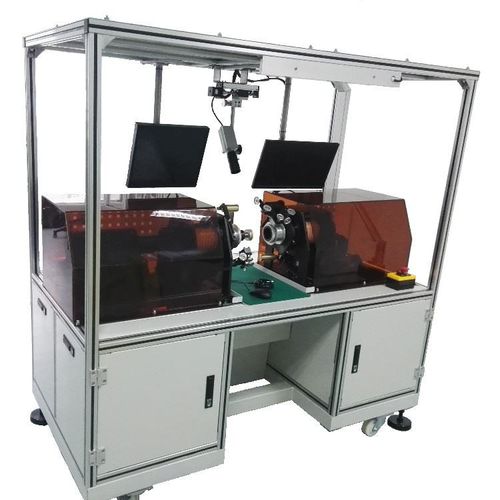

Fiber optic coil winding machine OFCW01V2.2

automatic

4-polar fiber coil winding machine of OFCW01V2.2 is the equipment specially designed for winding fiber coil using the 4-polar winding method. It can be used to produce a variety of fiber coil products with different specifications with 4-polar winding. The equipment has been updated for many generations and designed for engineering, with simple operation, high control precision and high degree of automation, which is suitable for winding fiber coil products with low & medium precision. Characteristics 1. The structure design perfectly matches the 4-polar symmetrical winding method, and the winding process is simple & convenient. 2. Stable operation, simple & beautiful appearance. 3. The operation is accurate and the degree of automation is high, with precision servo motion control system & PLC control system. 4. The operation is easy & convenient via image acquisition & display system. 5. With online tension closed-loop feedback system, the tension is stable in the winding process and the yield is high. 6. Record various data automatically during the winding process, including tension, speed, length, number of turns, number of layers. Specifications 1. Adaptive winding-fiber diameter range:Ø0.08mm～Ø0.25mm 2. Adaptive fiber coil standing outer diameter range:≤120mm 3. Adaptive fiber coil standing width range:≤50mm 4. Winding speed:≤50 r/min 5. Tension control range:5g～50g 6. Tension fluctuation range:±1g 7. Turn accuracy:0.01 turn 8. Equipment dimension (L×W×H):1800mm×900mm×1850mm 9. Total weight:800 kg
