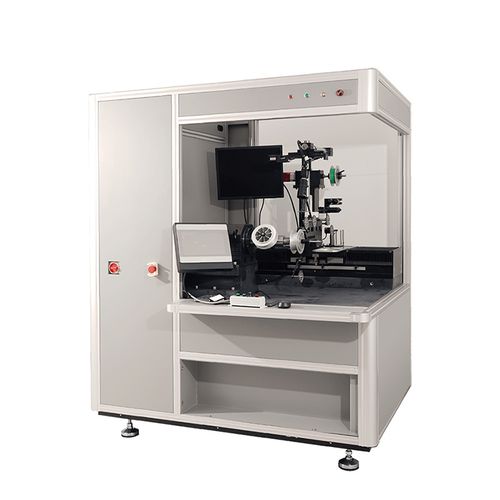

Multipole-symmetrical Winding Machine is a kind of equipment specially used to realize fixed-length precision winding of optical fiber coil by quadrupole, octupole and hexadecapole symmetrical winding method. Which can produce a variety of optical fiber coil products with different specifications. The equipment is designed in engineering, easy to operate, high in control precision and high in automation, and is especially suitable for winding high-precision optical fiber coils.
Product Characteristics
1.Suitable for winding high-precision optical fiber rings with various quadrupole, octupole and hexadecapole symmetrical winding methods;
2.Adopt precision marble platform base to ensure the stable operation of equipment;
3.Adopt precision servo motion control system and PLC control system, with accurate operation and high degree of automation;
4.Using image acquisition and display system, the touch screen control operation is more concise;
5.The online tension closed-loop feedback system is adopted, and the tension in the winding process is stable and the yield is high.
6.The winding process automatically records all kinds of data, including tension, speed, length, turns, layers, etc.
