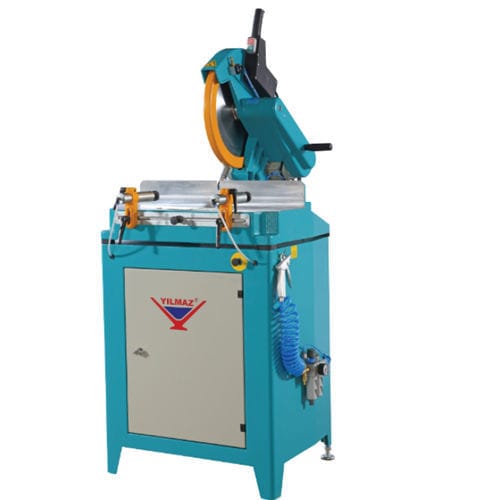

Electric cut-off saw KD 350 D

for metalsfor woodfor plastics

Product description
The KD 350 D miter saw is designed for straight and angled cutting of PVC, aluminium and wooden profiles. Suitable for workshop and production use where precise profile cutting is required.

Product video
Embedded product video (YouTube) available on the product page.

General features

• Position stops at 45°-30°-22.5°-15°-0° both left and right
• Pivot range from 45° left to 45° right, infinitely adjustable
• Aluminium body and steel-sheet machine stand
• Mechanical design allowing accurate adjustment of cutting angles
• Strong spring system and protective shield

Standard accessories

• Machine stand
• Air gun (KD 350 PS)
• Saw blade cooling system (KD 350 PS)
• 2x pneumatic horizontal clamps (KD 350 PS)
• 2x manual horizontal clamps

Optional accessories

• MKN 300 length stop — left (3 m)
• MKN 300 length stop — right (3 m)
• DKN 302 length stop — right (3 m)
• DKN 602 length stop — right (6 m)
• Spare saw blade, Ø350 mm

Technical specifications
Electrical: 2.2 kW / 400 V AC, 3P+PE / 50/60 Hz
Rotation speed: 2900 RPM
Saw blade: D: Ø350 mm; bore d: Ø30–32 mm
Flow / throughput: ---
Pressure: ---
Dimensions (LxWxH): 72 x 76 x 157
Weight: 123 kg

Technical details

• Model: KD 350 D
• Application: Straight and angled cutting of PVC, aluminium and wooden profiles
• Motor power & supply: 2.2 kW; 400 V AC, 3P+PE; 50/60 Hz
• Blade speed: 2900 RPM
• Blade outer diameter: Ø350 mm
• Blade bore: Ø30–32 mm
• Pivot/angle settings: position stops at 45°, 30°, 22.5°, 15°, 0° left and right; pivoting range adjustable from 45° left to 45° right infinitely
• Construction: Aluminium body; machine stand in steel sheet; mechanical design for easy angle adjustment; strong spring system; protective shield
• Standard accessories: Machine stand; air gun (KD 350 PS); saw blade cooling system (KD 350 PS); 2 pneumatic horizontal clamps (KD 350 PS); 2 manual horizontal clamps
• Optional accessories: MKN / DKN length stops (3 m and 6 m options); spare Ø350 mm saw blade
• Dimensions: 72 x 76 x 157 (units as on page)
• Net weight: 123 kg
