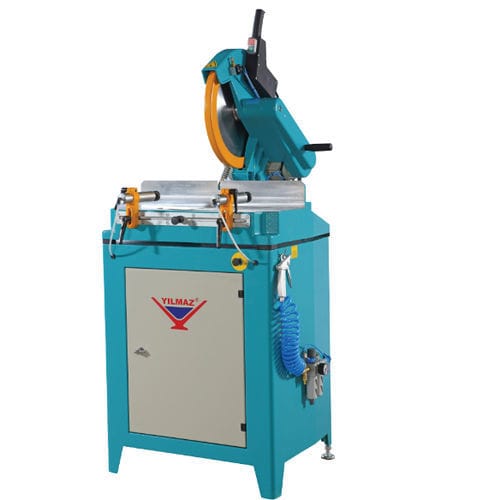

Miter saw KD 400 PS

horizontalverticalfor PVC

Product overview
The KD 400 PS miter saw is designed for straight and angled cutting of PVC, aluminium and wooden profiles, suitable for production and workshop environments.

General features

• Angle stops at 45°-30°-22.5°-15°-0° both left and right
• Pivot range from 45° left to 45° right, infinitely adjustable
• Aluminium body construction with steel sheet machine stand
• Robust mechanical design enables precise and repeatable angle adjustments
• Strong spring system and protective shield for safe handling

Standard accessories

• Ø 400 mm saw blade
• 2 x manual horizontal clamps (KD 400 D)
• 2 x pneumatic horizontal clamps (KD 400 PS)
• Air gun (KD 400 PS)
• Spray saw blade lubrication system (KD 400 PS)

Optional accessories

• 2 x pneumatic vertical clamps (KD 400 PS)
• MKN 300 length stop – right (3 m)
• MKN 300 length stop – left (3 m)
• DKN 302 length stop – right (3 m)
• DKN 602 length stop – left (6 m)
• Spare saw blade Ø 400 mm

Product video
Video available demonstrating KD 400 PS operation and key functions.

Technical specifications

• Model: KD 400 PS
• Intended use: straight and angled cutting of PVC, aluminium and wooden profiles
• Saw blade diameter: Ø 400 mm
• Angle positions: 45°, 30°, 22.5°, 15°, 0° (left and right)
• Pivot range: 45° L to 45° R, infinitely adjustable
• Construction: aluminium body; steel sheet machine stand
• Clamping: 2 pneumatic horizontal clamps (standard for KD 400 PS); optional pneumatic vertical clamps
• Standard equipment: air gun; spray lubrication system for saw blade
• Optional length stops available in 3 m and 6 m
• Safety: protective shield and strong spring system
