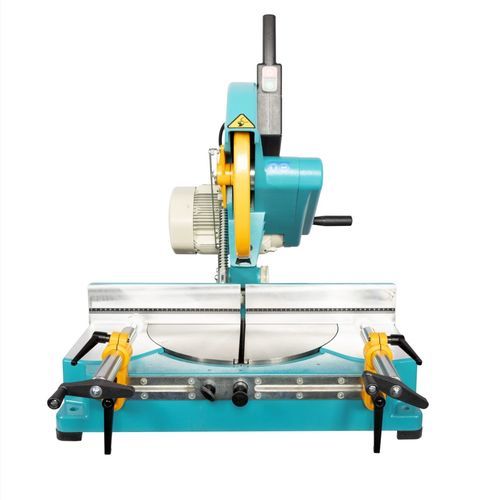

Electric cut-off saw KD 350 M

for woodfor plasticsfor metals

Overview
The KD 350 PS miter saw is designed for straight and angular cutting of PVC, aluminium and wooden profiles.

Main features

• Indexing positions at 45°-30°-22.5°-15°-0° both left and right
• Continuous rotation range from 45° left to 45° right
• Aluminium housing with steel-sheet machine support
• Robust mechanical construction for easy adjustment of required cutting angles
• Spring return system and protective blade guard

Standard accessories

• Ø350 mm saw blade
• 2 × pneumatic horizontal clamps (KD 350 PS)
• Compressed air gun (KD 350 PS)
• Blade cooling system (KD 350 PS)

Optional accessories

• Replacement Ø350 mm saw blade
• 2 × pneumatic vertical clamps (KD 350 PS)
• MKN 300 stop-length right (3 m)
• MKN 300 stop-length left (3 m)
• DKN 302 stop-length right (3 m)
• DKN 602 stop-length left (6 m)

Technical summary
2.2 kW / 400V AC 3P+PE / 50/60 Hz.
2900 RPM
Blade: Ø350 mm; bore Ø30/32 mm
Dimensions (mm): 82 x 76 x 78.5
Weight: 86 kg / 71 kg

Product video
Demonstration video available (YouTube).

Technical specifications

• Power: 2.2 kW / 400V AC 3P+PE / 50/60 Hz
• Rotation speed: 2900 RPM
• Blade: Diameter Ø350 mm; bore Ø30/32 mm
• Angular range: continuous from 45° left to 45° right; indexing at 45°-30°-22.5°-15°-0° left and right
• Construction: aluminium housing, robust mechanical structure with spring system and protective guard
• Dimensions (mm): 82 x 76 x 78.5
• Weight: 86 kg / 71 kg (reported values)
• Standard equipment: Ø350 mm blade, 2 horizontal clamps
• Optional equipment: machine stand, MKN/ DKN stop systems (3 m / 6 m), spare blade Ø350 mm
