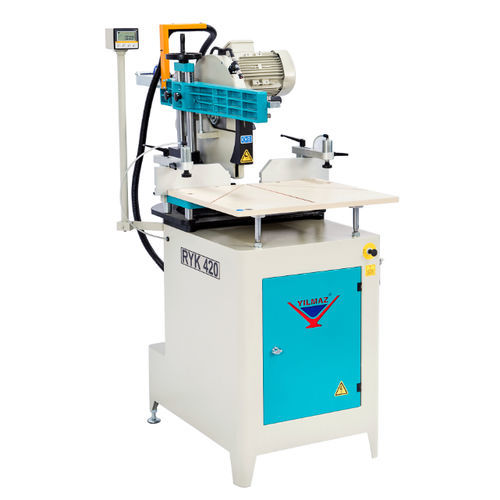

Miter saw RYK 420 S

circularfor aluminumfor non-ferrous metals

Product Info
The RYK 420 S radial saw is designed for straight and angular cutting of large aluminium, brass and non‑ferrous metal profiles. The pivoting and tilting head enables precise straight and mitre cuts. The machine is fitted with a 2.2 kW motor and a cast‑iron body for industrial use.

General Features

• Pivoting and tilting head for straight and angular cutting operations
• 2.2 kW motor at 3000 RPM for powerful cutting
• Smooth movement, high precision and sensitivity provided by gas spring, linear bearings and ergonomic handle
• Cast‑iron construction for durability
• Robust mechanical construction enabling easy adjustment of cutting angles
• Pre‑set stop positions at 15°‑22.5°‑30°‑45°‑60°‑90° left and right
• Continuous pivot range from 45° right to 60° left
• Tilt range from 90° to 45° left

Standard Accessories

• Ø420 mm saw blade for aluminium cutting
• Air gun
• 2 x pneumatic vertical clamps
• Spray lubrication system for the blade
• Laser marking indicating the cutting line
• Brake unit operated by motor stop button
• Digital display for easy pivot angle adjustment

Optional Accessories

• Hydraulic control unit for saw head feed
• Special miter for longitudinal cutting operations
• DKN 602 length stop
• Connection kit for DKN and MKN length stops
• Spare Ø420 mm saw blade for aluminium cutting

Technical Specifications

• Model: RYK 420 S
• Motor / Electrical: 2.2 kW / 4.7 A; 3000 RPM
• Power supply: 400 V AC 3P+PE; 50/60 Hz
• Saw blade diameter: D Ø420 mm; bore d Ø30/32 mm
• Flow (lubrication/air): 24 L/min
• Operating pressure: 6‑8 bar
• Dimensions (L x W x H): 184 x 76 x 159
• Weight: 202 Kg (net) / 255 Kg (gross)
