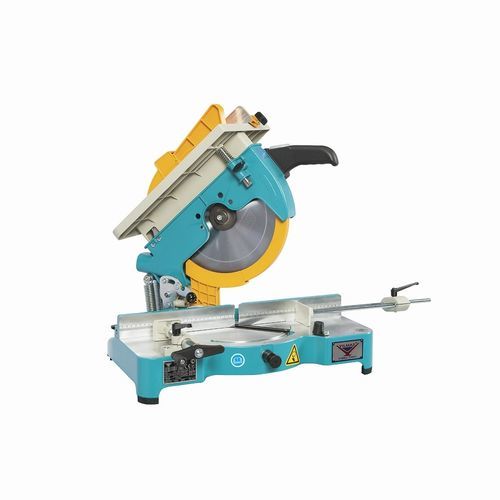

Miter saw KD 305

for aluminumfor PVCwood

Product Info
KD 305 portable miter saw machine is designed for straight and angular cutting of PVC, aluminium and wooden profiles.

General Features

• Preset location points at 45° - 30° - 22.5° - 15° - 0° both left and right
• Pivoting range from 45° left to 45° right, infinitely adjustable
• 0–45° tilting angle to the left (reference KY 305)
• Lateral and longitudinal cutting capability on the upper table
• Strong spring return system and protective shield

Standard Accessories

• Profile support
• 1x horizontal clamp

Optional Accessories

• MS type machine stand
• MKN 300 roller conveyor
• MKN 150 roller conveyors
• Ø 300 mm saw blade

Product Video
A product video is available showing KD 305 operation and features.

Technical Specifications

• Model: KD 305
• Machine type: Portable miter saw machine for straight and angular cutting
• Materials: PVC, aluminium, wooden profiles
• Preset location points: 45°, 30°, 22.5°, 15°, 0° (both left and right)
• Pivoting: Infinitely adjustable from 45° left to 45° right
• Tilt range: 0–45° tilting angle to the left (reference KY 305)
• Upper table: Lateral and longitudinal cutting capability
• Safety & mechanics: Strong spring return system and protective shield
• Included accessories: Profile support, horizontal clamp (1x)
• Optional accessories: MS machine stand, MKN 300 / MKN 150 roller conveyors, Ø 300 mm saw blade
