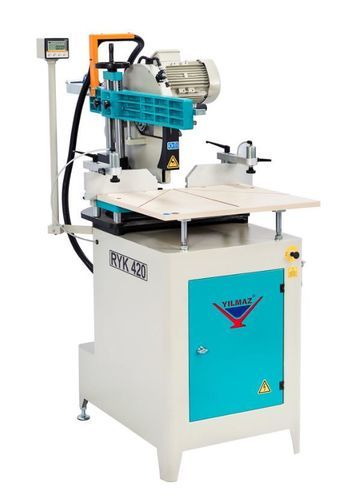

Miter sawing machine RYK 420 W

circularfor plasticsfor PVC

Overview RYK 420 W radial saw is designed for straight and angled cutting of large-format PVC, Teflon, bakelite and wood. The pivoting and tilting head enables straight and miter cuts for industrial and workshop applications.

Technical specifications Electrical: 2.2 kW / 4.7 A / 400V AC 3P+PE / 50/60 Hz
Rotation speed: 3000 RPM
Blade: D: Ø420 mm; Bore: Ø30/32 mm
Air flow: 24 L/min
Operating air pressure: 6-8 bar
Dimensions (as listed): 184 x 76 x 159
Weight: 255 Kg / 202 Kg

General features

• Pivoting and tilting head for multiple cutting operations
• 2.2 kW motor delivering 3000 RPM nominal speed
• Smooth movement and precision ensured by gas spring, linear bearings and ergonomic handle
• Cast iron body for structural stability
• Robust mechanical construction for easy angle adjustments
• Indexed stops at 15°-22.5°-30°-45°-60°-90° left and right
• Pivot range: continuously adjustable from 45° right to 60° left
• Tilting range: 90° to 45° left

Standard accessories

• Ø420 mm saw blade for wood and PVC
• Air gun
• 2 pneumatic vertical clamps
• Laser marking for cutting line
• Brake unit with motor stop button
• Digital display for pivot angle adjustment

Optional accessories

• Hydraulic control unit for saw head feed
• Special miter for longitudinal cuts
• DKN 602 length stop
• Connection kit for DKN and MKN length stops
• Spare Ø420 mm saw blade for PVC and wood

Product video Embedded product video available on the product page (YouTube embed).

Model / Technical specifications

• Model: RYK 420 W
• Application: straight and angled cutting of PVC, Teflon, bakelite and wood
• Motor power: 2.2 kW (3000 RPM)
• Current: 4.7 A
• Voltage: 400V AC 3P+PE, 50/60 Hz
• Blade diameter: Ø420 mm
• Blade bore: Ø30/32 mm
• Air flow: 24 L/min
• Operating pressure: 6-8 bar
• Dimensions (listed): 184 x 76 x 159
• Weight: 255 Kg / 202 Kg
