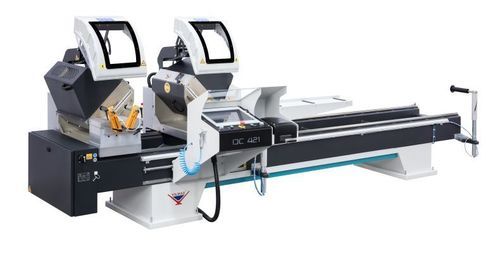

PVC double-head miter saw DC 421 PBSfor aluminumfor profilescompound angle
Add to favorites
Compare this product
Characteristics
- Treated material
- for aluminum, for PVC
- Other characteristics
- for profiles, automatic, compound angle
Description
Product Info
DC 421 PBS is a fully automatic double-head mitre saw designed for straight and angled cutting of large PVC and aluminium profiles, using Ø 420 mm saw blades on each head.
General Features
Standard Accessories
Optional Accessories
Technical Specifications
D: Ø420 mm; d: Ø30-32 mm
Electrical: 5 kW / 4A / 400V AC 3P+PE / 50/60 Hz
Saw/spindle speed: 2,900 RPM
Air flow: 165 L/min
Air pressure: 6-8 bar
Dimensions (approx.): 145 x 451 x 167 mm
Weight: 965 kg / 888 kg
Specifications
DC 421 PBS is a fully automatic double-head mitre saw designed for straight and angled cutting of large PVC and aluminium profiles, using Ø 420 mm saw blades on each head.
General Features
- Two-hand safety operation
- Automatic tilt to 90° and 45° inward for both heads; manual adjustment for intermediate angles between 90° and 45° inward
- Automatic 90° and 45° inward slicing/cutting
- Hydro-pneumatic blade feed
- Cutting accuracy ±0.2 mm
- Solid steel frame construction
- Automatically closing safety guards
- Windows-based industrial PC with 15'' colour LCD touch screen
- Import/export cut lists in .mdb and .csv via USB or network
- Reads profile dimensions and angles from cut lists in automatic mode
- Remote technical support capability
- Saw motor power: 2 x 2.2 kW
Standard Accessories
- 2 x Ø 420 mm saw blades
- Roller conveyor and 2 pneumatic profile supports
- Spray lubrication system for saw blades
- 4 pneumatic horizontal clamps
- Air gun
- 2 pneumatic vertical clamps
- Barcode printer
Optional Accessories
- DKN 70 short cut system (digital)
- DKN 71 short cut system (with ruler)
- VCE 1570 chip vacuum extractor
- Spare Ø 420 saw blade
- Mould heights for special profiles
- DKN 80 arrow cut system for mullion profiles
- RS 1000 profile support foot
- Machine length: 5 m
- Machine length: 6 m
Technical Specifications
D: Ø420 mm; d: Ø30-32 mm
Electrical: 5 kW / 4A / 400V AC 3P+PE / 50/60 Hz
Saw/spindle speed: 2,900 RPM
Air flow: 165 L/min
Air pressure: 6-8 bar
Dimensions (approx.): 145 x 451 x 167 mm
Weight: 965 kg / 888 kg
Specifications
- Model: DC 421 PBS
- Brand: YILMAZ MACHINE
- Application: Fully automatic double-head mitre saw for large PVC and aluminium profiles (straight and angular cutting)
- Saw blade diameter: Ø 420 mm
- Saw blade bore: Ø 30-32 mm
- Saw motors: 2 x 2.2 kW
- Main electrical data: 5 kW / 4A / 400V AC 3P+PE / 50/60 Hz
- Rotation speed: 2,900 RPM
- Air consumption/flow: 165 L/min
- Operating air pressure: 6-8 bar
- Cutting accuracy: ±0.2 mm
- Control & HMI: Windows-based industrial PC with 15'' LCD touch screen
- Data import/export: Cut lists in .mdb and .csv via USB and network
- Safety: Two-hand operation, automatically closing guards
