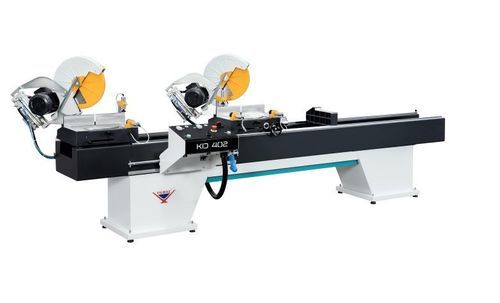

KD 402 S is a semi-automatic double-head miter saw designed for flat and angled cutting of large PVC, aluminium and wooden profiles using 2×Ø400 mm circular blades. The left cutting unit is fixed and the right unit is positioned manually. Digital readout and hydro-pneumatic feed provide accurate, repeatable cuts.

General features

• Two-hand safety operation
• Semi-automatic double-head miter saw for flat and angled cutting
• Indexed positions at 0°, 15°, 22.5°, 30° and 45° left and right
• Continuous pivot range ±45° inward/outward
• Left unit fixed; right unit manually moved to position
• Hydro-pneumatic saw feed
• Manual head positioning with pneumatic head locking
• On/off switch for horizontal clamp
• Pressure control valves on clamps for profile fixation
• Distance between heads adjustable and displayed on digital readout
• Cutting length range: 530–3455 mm
• Saw motors: 2×2.2 kW

Standard accessories

• 2×Ø400 mm saw blades (fitted)
• Profile support mechanism
• 3×pneumatic horizontal clamps
• 2×pneumatic vertical clamps
• Digital display for cutting length
• Pneumatic spray-mist lubrication system
• Air gun

Optional accessories

• VCE 1570 chip vacuum extractor, reduction and fittings
• Two-step head speed control system (patented)
• Spare Ø400 mm saw blade

Technical specifications
Electrical power / supply: 4440 W / 400 V AC 3P PE
Saw spindle speed: 2900 RPM
Saw blade diameter / bore: D Ø400 mm / d Ø30–32 mm
Air consumption: 46 Lt/min at 6–8 BAR
Dimensions (L×W×H): 129 × 556 × 144 (as supplied)
Weight: 593 kg / 482 kg (configurations)
Max cut length: 3455 mm; Min cut length: 530 mm

Applications and notes

• Suitable for large-size PVC, aluminium and wooden profile workshops
• Requires appropriate electrical supply and compressed air connection
• Operator training recommended for safe two-hand operation
