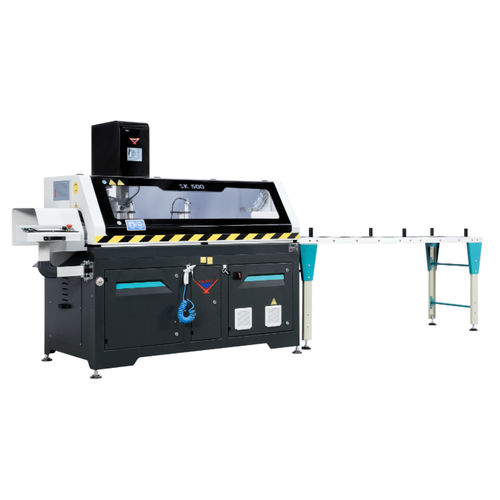

Electric cut-off saw SK 500

for metalsfor plastics

Product Info
SK 500 is designed for straight 90° cutting of large PVC and aluminium profiles using a Ø500 mm saw blade. The machine supports serial precision cutting and, optionally, servo-controlled vertical drilling (SK 500 D).

General Features

• Suitable for high-volume cutting of aluminium and PVC profiles for window manufacturing and industrial applications
• High-precision servo/synchronous motors and internationally recognized components
• Servo-controlled workpiece feeding for cycle-time savings (feeding distance per cycle: 5–1000 mm)
• Horizontal and vertical clamping during sawing operations
• Automatic table retraction to protect workpiece surfaces during blade descent
• Single-bar and multi-bar (bundle) cutting capability
• Spray lubrication system for saw blade
• Large program memory and automatic shutdown after programmed quantity
• Pneumatically opening safety guard and remote technical support via internet

Standard Accessories

• 2.5 m (L) x 0.5 m (W) infeed roller conveyor
• Supplied with Ø500 mm saw blade
• Spray saw blade lubrication system
• Air gun
• 3 horizontal clamps and 3 vertical clamps
• Swarf collection tray

Optional Accessories

• Spare saw blade Ø500 mm
• VCE 1570 chip vacuum extractor
• Additional 2.5 m of infeed or outfeed conveyor (and connection part)
• Servo-controlled drilling unit (SK 500 D)

Technical Specifications Table
D: Ø500 mm | d: Ø30-32 mm
Electric: 5.0 kW / 400V AC 3P+PE / 50/60 Hz
Saw motor power: 4 kW
Drill/spindle speed (drilling unit): 2,500 RPM
Compressed air: 150 L/min at 6–8 bar
Feeding distance per cycle: min. 5 – max. 1000 mm
Min. cutting length: 5 mm
Clamping capacity H: 5–160 mm | W: 5–370 mm
Dimensions (LxWxH): 134 x 472 x 138 (manufacturer units)
Machine weight: approx. 600 kg / 540 kg


Technical Characteristics

• Model: SK 500
• Application: Straight cutting of PVC and aluminium profiles, serial and precision production
• Saw blade: Ø500 mm (bore Ø30-32 mm)
• Main electrical power: 5.0 kW (400V AC 3P+PE, 50/60 Hz)
• Saw motor: 4 kW
• Optional drilling unit: servo-controlled (SK 500 D), spindle 2,500 RPM
• Feeding range per cycle: 5–1000 mm
• Clamping: horizontal and vertical; automatic table retraction
• Control: Windows-based industrial PC with 7" color LCD touch screen
• Standard conveyors and clamps included; spray lubrication and optional extraction available
