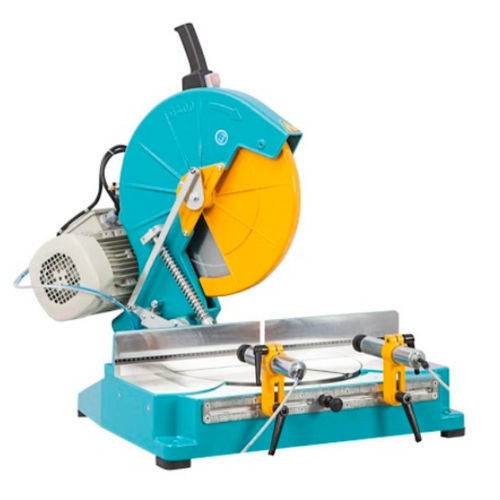

Miter saw KD 400 M

verticalfor PVCfor aluminum

Product Info
KD 400 M mitre saw is designed for straight and angled cutting of PVC, aluminium and wooden profiles.

General Features

• Fixed angle positions at 45° / 30° / 22.5° / 15° / 0° left and right
• Continuously adjustable pivot from 45° left to 45° right
• Aluminium body construction
• Mechanical design allowing precise adjustment of cutting angles
• Spring return system and protective guard

Standard Accessories

• Supplied with saw blade Ø 400 mm
• 2 × manual horizontal clamps

Optional Accessories

• MKN 300 length stop (3 m)

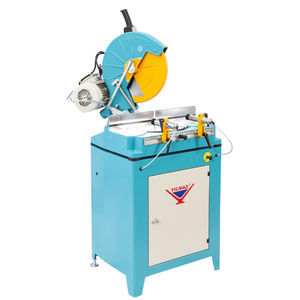

• Machine stand
• Spare saw blade Ø 400 mm

Technical Specifications Table
Electrical: 2.2 kW / 400V AC 3P+PE / 50/60 Hz
Rotation speed: 2900 RPM
Blade: D: Ø400 mm; Bore: Ø30/32 mm
Dimensions: 86x76x83
Weight: 88 Kg / 71 Kg

Technical characteristics

• Model: KD 400 M
• Application: Straight and angled cutting of PVC, aluminium and wooden profiles
• Power: 2.2 kW
• Supply: 400V AC 3P+PE, 50/60 Hz
• Spindle speed: 2900 RPM
• Blade diameter: Ø400 mm
• Bore diameter: Ø30/32 mm
• Angle positions: 45° / 30° / 22.5° / 15° / 0° (left & right)
• Pivot range: Continuously adjustable from 45° left to 45° right
• Body: Aluminium construction
• Included accessories: Saw blade Ø400 mm; 2 manual horizontal clamps
• Optional accessories: MKN 300 length stop (3 m); machine stand; spare Ø400 mm saw blade
