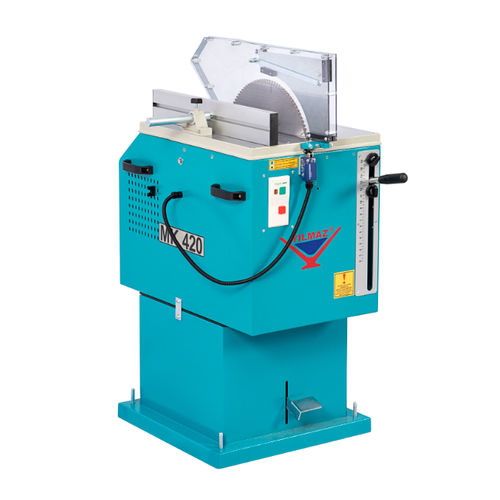

Wood cut-off saw MK 420

for metalsfor plastics

Product Info
MK 420, MK 420 PS and MK 450 are manual up‑cutting saw machines designed for straight and graduated cutting of PVC, aluminium, brass, wood and other non‑ferrous materials. Available configurations address different clamping and lubrication needs for workshop and production environments.

General Features

• Manual upward saw stroke (up‑cut)
• Adjustable back fence to optimise blade capacity for wide and flat profiles
• Index positions at 60°, 45°, 30°, 22.5°, 15°, 0° to both left and right
• Wide angular cutting range up to 60° left and 60° right
• Adjustable working direction via 360° rotatable platform operated by foot pedal
• Easy saw blade change
• Capability for both lateral and longitudinal cutting operations

Standard Accessories

• Supplied with saw blade Ø 450 mm
• Miter stop
• Profile length stop
• Pneumatic spray blade lubrication (MK 420 PS)
• Electric spray blade lubrication (MK 420 – MK 450)
• 2 x mechanical top clamps (MK 420 – MK 450)
• 2 x pneumatic top clamps (MK 420 PS)
• Safety guard for lateral cutting operations (MK 420 PS)

Optional Accessories

• Safety guard for longitudinal cutting operations (MK 420 PS)
• 2 x vertical clamps
• MKN 300 length stop (3 m)
• Connection kit for MKN and DKN length stops
• Spare saw blade, Ø 450 mm

Technical Specifications

• Models: MK 420, MK 420 PS, MK 450
• Standard blade diameter: Ø 450 mm
• Angle positions: 0°, 15°, 22.5°, 30°, 45°, 60° (left and right)
• Maximum cutting angle: ±60°
• Saw stroke: manual upward stroke
• Platform: rotatable 360° via foot pedal to change working direction
• Cutting modes: lateral and longitudinal
• Lubrication systems: pneumatic (MK 420 PS) and electric spray (MK 420, MK 450)
• Top clamps: 2 mechanical (MK 420 / MK 450) or 2 pneumatic (MK 420 PS)
• Optional length stop: MKN 300 (3 m) and connection kits
• Materials processed: PVC, aluminium, brass, wood and other non‑ferrous materials
