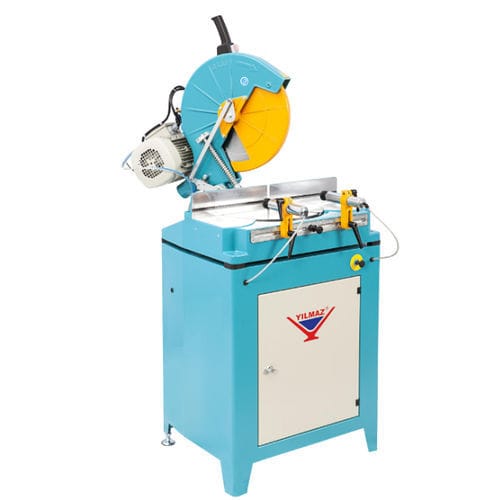

Electric cut-off saw KD 400 D

pneumaticfor metalsfor plastics

Product information
KD 400D and KD 400P miter saw cutting machines are designed for straight and angular cutting of PVC, aluminium and wooden profiles. Versions and optional pneumatic/lubrication packages are available (see KD 400 PS variants).

General features

• Indexed positions at 45°-30°-22.5°-15°-0° both left and right
• Pivot range from 45° left to 45° right with infinite adjustment
• Aluminium body construction; machine stand in steel sheet
• Mechanical design allows easy and repeatable angle setting
• Strong spring return system and protective blade guard

Standard accessories

• Ø 400 mm saw blade
• Machine stand
• 2 x manual horizontal clamps
• 2 x pneumatic horizontal clamps (KD 400 PS)
• Air gun (KD 400 PS)
• Spray saw blade lubrication system (KD 400 PS)

Optional accessories

• MKN 300 length stop — right (3 m)
• MKN 300 length stop — left (3 m)
• DKN 302 length stop — right (3 m)
• DKN 602 length stop — right (6 m)
• Brake unit working with motor stop button (KD 400 PS)
• 2 x pneumatic vertical clamps (KD 400 PS)
• Spare saw blade Ø 400 mm

Technical specifications (summary)
Electrical: 2.2 kW / 400V AC 3P+PE / 50/60 Hz.
Rotation speed: 2900 RPM
Blade dimensions: D: Ø400 mm; bore d: Ø30/32 mm
Dimensions (LxWxH): 86 x 76 x 160 (as provided)
Weight: 137 kg / 123 kg (variants)

Characteristics / technical specifications

• Machine type: Miter saw cutting machine for PVC, aluminium and wooden profiles
• Models: KD 400D and KD 400P (pivoting left and right)
• Angle positions: 45°, 30°, 22.5°, 15°, 0° (both left and right)
• Pivot range: Infinite adjustment from 45° left to 45° right
• Construction materials: Aluminium body; machine stand in steel sheet
• Drive power: 2.2 kW
• Supply: 400V AC 3P+PE, 50/60 Hz
• Spindle speed: 2900 RPM
• Saw blade: Ø400 mm, bore Ø30/32 mm
• Dimensions: 86 x 76 x 160 (units as provided)
• Weight: 137 kg / 123 kg (variants)
• Standard clamps: 2 x manual horizontal clamps (pneumatic horizontal clamps available on KD 400 PS)
• Optional accessories: length stops (3 m, 6 m), brake unit, pneumatic vertical clamps, spare Ø 400 mm blade, spray lubrication and air gun for KD 400 PS
