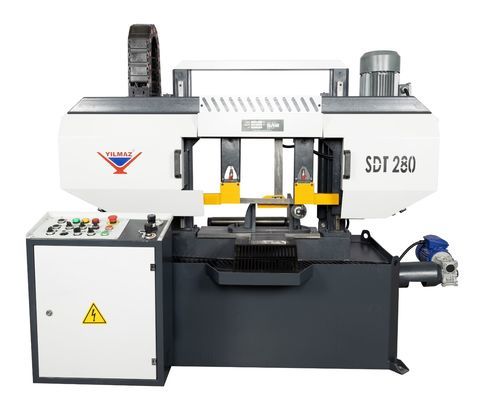

Band-knife cutting machine SDT 280

for PVCprofilefor PVC profiles

Product Info
Linear semi-automatic band saw designed for industrial cutting of bundled backing sheets, profiles and reinforcements. Heavy-gauge steel frame with ground pillars ensures dimensional accuracy. Hydraulic cutting and hydraulically driven band-frame movement support consistent, repeatable cuts. Material is manually advanced between cycles against a length stop. Suitable for PVC window reinforcement and profile processing.

General Features

• Hydraulic top clamping unit securing bundled materials
• Hydraulically operated band saw tension mechanism
• Two adjustable micro-spray cooling units
• Band saw frame with hydraulic up/down movement
• Speed control unit to adjust blade speed according to material
• Speed control valve to adjust downward feed speed according to material
• Band saw frame made of hardened steel with chrome coating and two ground pillars for high precision
• Chip brush for clearing the blade during cutting

Standard Accessories

• 3 m infeed roller table at machine entrance
• Chip conveyor unit to remove cutting chips from the work area
• 2° inclined bimetal band saw blade fitted on the machine bow

Optional Accessories

• No optional accessories listed

Technical Specifications

• Model: SDT 280
• Type: linear semi-automatic band saw
• Cutting method: hydraulic (semi-automatic cycle)
• Construction: heavy-gauge steel frame with ground pillars for high accuracy
• Clamping: hydraulic top clamping for bundled materials
• Band tension: hydraulic tension mechanism
• Cooling: 2 adjustable micro-spray units
• Movement: band frame moves up/down hydraulically
• Guides: two ground pillars for precision
• Control: speed control unit and downward speed valve adjustable per material
• Maintenance aid: chip brush
• Included equipment: 3 m infeed roller table, chip conveyor, 2° inclined bimetal blade
• Application: cutting backing sheets mounted on solid bars, profiles and reinforcements for PVC windows
