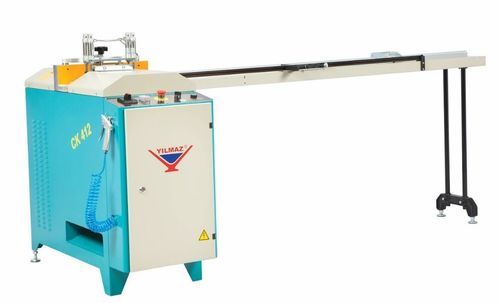

PVC double-head miter saw CK 412

for profilesautomatic

Product overview
CK 412 is an automatic twin-blade saw engineered for precise 45° miter cutting of PVC glazing bead profiles used in window and door production.

Key features

• Adjustable saw blade feeding speed for process tuning
• Pneumatic saw feed operated by a push button
• Equipped with 2 pneumatic vertical clamps for secure holding
• Automatic return to the start position after each cycle
• Twin‑blade design for simultaneous double cuts
• Mechanical memory enabling cutting of up to 8 glazing bead profiles without moulds

Standard accessories

• 2x Ø200 mm and 2x Ø103 mm saw blades
• KN 152 roller conveyor for in-feeding with manual measuring unit
• Air gun

Optional accessories

• Electrical foot pedal and regulator & manometer for vertical clamps
• SKN 301 length stop with 1.55/2.955 m digital measuring unit
• MKN 300 length stop
• SKN 300 length stop
• SKN 600 length stop
• Digital measuring rod 1.55/2.955 m (for SKN 300 & SKN 600)
• Spare saw blade Ø200 mm
• Spare saw blade Ø103 mm
• Moulds for special glazing beads
• KN 152 roller conveyor for out-feeding

Product video
A product video is available demonstrating CK 412 operation and the cutting process.

Technical specifications

• Model: CK 412
• Brand: YILMAZ MACHINE
• Operation: Automatic
• Designed cutting angle: 45° for PVC glazing bead profiles
• Saw design: Twin‑blade
• Saw blade feeding: Adjustable feeding speed; pneumatic feed by push button
• Clamping: 2 pneumatic vertical clamps (regulator & manometer optional)
• Process control: Automatic return to start; mechanical memory for up to 8 profiles without moulds
• Standard saw blades supplied: 2x Ø200 mm and 2x Ø103 mm
• Conveying: KN 152 roller conveyor for in-feeding (standard); KN 152 for out-feeding (optional)
• Measurement options: Manual measuring unit (standard); digital measuring unit 1.55/2.955 m and compatible digital measuring rod (optional)
• Optional length stops: SKN 301 (with digital unit), MKN 300, SKN 300, SKN 600
• Spare parts & tooling: spare saw blades (Ø200 / Ø103 mm) and moulds for special glazing beads (optional)
