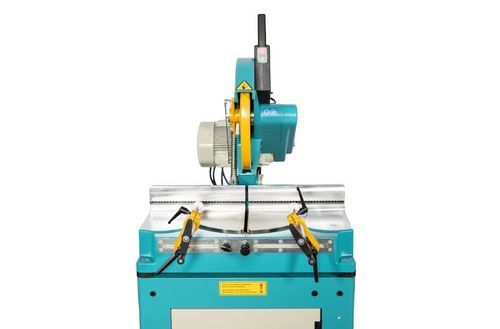

Electric cut-off saw KD 350 D

for woodfor plasticsfor metals

Product Info
KD 350 D miter saw machines are built for straight and angular cutting of PVC, aluminium and wooden profiles in industrial production environments.

General Features

• Preset locating points at 45° / 30° / 22.5° / 15° / 0° both left and right
• Pivot range: continuously adjustable from 45° left to 45° right
• Aluminium body construction; machine stand in steel sheet
• Robust mechanical design for precise angle adjustment and repeatability
• Strong spring return system and protective blade shield

Standard Accessories

• Machine stand
• Air gun (KD 350 PS)
• Saw blade cooling system (KD 350 PS)
• 2x pneumatic horizontal clamps (KD 350 PS)
• 2x manual horizontal clamps

Optional Accessories

• MKN 300 length stop – left (3 m)
• MKN 300 length stop – right (3 m)
• DKN 302 length stop – right (3 m)
• DKN 602 length stop – right (6 m)
• Spare saw blade, Ø 350 mm

Technical Specifications (table)
Power: 2.2 kW / 400V AC 3P+PE / 50/60 Hz.
Spindle speed: 2,900 RPM
Saw rotation speed: 2,900 RPM
Blade diameter (D): Ø350 mm
Bore diameter (d): Ø30–32 mm
Dimensions (LxWxH): 72 x 76 x 157
Weight: 123 Kg

Characteristics / Technical specifications

• Model: KD 350 D
• Application: Straight and angular cutting of PVC, aluminium and wooden profiles
• Motor: 2.2 kW (400V AC, 3P+PE, 50/60 Hz)
• Speeds: spindle and blade ≈ 2,900 RPM
• Blade: Ø350 mm, bore Ø30–32 mm
• Angle settings: preset points at 45° / 30° / 22.5° / 15° / 0° (left and right); continuously adjustable pivot ±45°
• Construction materials: aluminium body; steel sheet machine stand
• Safety / operation: robust mechanical construction, strong spring system, protective shield
• Standard & optional accessories: machine stand, air gun, blade cooling system, pneumatic and manual clamps, length stops (3 m / 6 m), spare Ø350 mm blade
• Dimensions and weight as specified above
