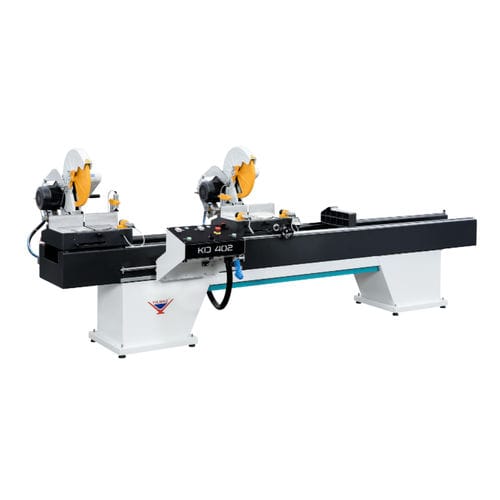

Wood double-head miter saw KD 402 S

for PVCfor aluminumwith integrated positioner

Product overview
KD 402 S is a semi-automatic double-head miter saw engineered for flat and angled cutting of large profiles in PVC, aluminium and wood. It features two Ø400 mm circular blades, hydro-pneumatic feed and precise head distance adjustment via a digital display.

Key features

• Two-hand safety operation
• Semi-automatic double-head configuration for flat or miter cuts
• Pre-set locating positions at 0°, 15°, 22.5°, 30° and 45° left and right
• Infinite pivoting range ±45° for inwards/outwards cutting
• Left cutting unit fixed; right unit manually positioned
• Hydro-pneumatic saw feed for consistent cutting speed
• Manual saw head positioning with digital distance readout
• Horizontal clamp on/off switch and pressure control valves on clamps
• Pneumatic head locking and multiple pneumatic clamps (horizontal and vertical)
• Max cut length 3455 mm / Min cut length 530 mm
• Saw motors: 2 x 2.2 kW

Standard accessories

• 2 x Ø400 mm saw blades (supplied)
• Profile support mechanism
• 3 pneumatic horizontal clamps
• 2 pneumatic vertical clamps
• Digital display for cutting length
• Pneumatic spray-mist lubrication system
• Air gun

Optional accessories

• VCE 1570 chip vacuum extractor with reducers and fittings
• Two-step head speed control system (patented)
• Spare Ø400 mm saw blade

Technical specifications
Electrical power: 4440 W / 400V AC 3P PE
Saw/spindle speed: 2900 RPM
Saw blade diameter / bore: D: Ø400 mm d: Ø30-32 mm
Air flow: 46 Lt/min
Air pressure: 6-8 BAR
Dimensions (LxWxH): 129 x 556 x 144 (reported)
Weight: 593 Kg / 482 Kg

Technical data

• Model: KD 402 S
• Materials: PVC, aluminium, wood
• Blades supplied: 2 x Ø400 mm
• Saw motor power: 2 x 2.2 kW
• Max cut length: 3455 mm; Min cut length: 530 mm
• Pivot/miter positions: 0°, 15°, 22.5°, 30°, 45° left & right; pivot range ±45°
• Saw feed: hydro-pneumatic
• Head positioning: manual; distance adjustable via digital display
• Clamping: pneumatic horizontal and vertical clamps with pressure control; horizontal clamp on/off
• Options: VCE 1570 chip extractor, two-step head speed control, spare Ø400 mm blade
