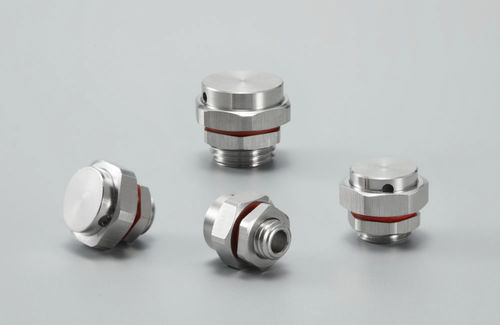

Air valve SV-M series

pneumatic

Air ventilation valve-Stainless steel AISI304 Materials: stainless steel AISI 304 Operating temperature: -40℃ to +150 ℃ moisture permeability: >5000g/24H.M2 Hydrostatic pressure: ≥100mbar for 30min Thread Product code air permeability(@70mbar) thread outer diameter(mm) thread length(mm) M4 X 0.8-6 SV-M4 ≥200ml/min 4 6 M5 X 0.8-7 SV-M5 ≥300ml/min 5 7 M6 X 1.0-7 SV-M6 ≥300ml/min 6 7 M8 X 1.0-7 SV-M8 ≥900ml/min 8 7 M8 X 1.25-7 SV-M8 ≥900ml/min 8 7 M10 X 1.0-8 SV-M10 ≥1500ml/min 10 8 M10 X 1.5-8 SV-M10-1 ≥1500ml/min 10 8 M12 X 1.5-6 SV-M12 ≥1500ml/min 12 6 M12 X 1.5-7 SV-M12-1 ≥1500ml/min 12 7 M12 X 1.5-10 SV-M12-2 ≥1500ml/min 12 10 M12 X 1.75-7 SV-M12-3 ≥1500ml/min 12 7 M12 X 1.75-10 SV-M12-4 ≥1500ml/min 12 10 M16 X 1.5-10 SV-M16 ≥2300ml/min 16 10 M20 X 1.5-10 SV-M20 ≥2300ml/min 20 10 M22 X 1.5-10 SV-M22 ≥2300ml/min 22 10 M24 X 1.5-10 SV-M24 ≥2500ml/min 24 10 M25 X 1.5-10 SV-M25 ≥2500ml/min 25 10 M40 X 1.5-15 SV-M40 ≥2500ml/min 40 15
