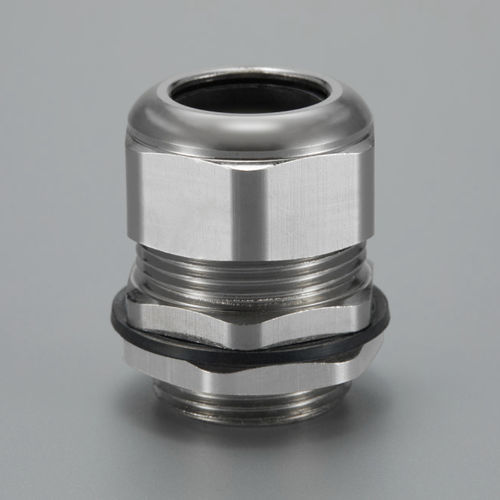

Brass cable gland PG-BRS series

nickel-plated brassIP68PG thread

Material: Brass with nickel plated, airtight ring claw: UL approved nylon PA66 O-ring sealing: NBR, weathering rubber: EPDM Operating temperature: -40℃ to +1000 ℃ IP rating: IP68(using O-sealing) - Thread: PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48, PG63, M12 X 1.5, M16 X 1.5, M18 X 1.5, M20 X 1.5, M22 X 1.5, M24 X 1.5, M25 X 1.5, M27 X 1.5, M30 X 1.5, M32 X 1.5, M36 X 1.5, M40 X 1.5, M48 X 1.5, M56 X 1.5, M63 X 1.5, M64 X 1.5, M75 X1.5, M88 X1.5 - Product code: PG7-BRS, PG9-BRS, PG11-BRS, PG13.5-BRS, PG16-BRS, PG21-BRS, PG29-BRS, PG36-BRS, PG42-BRS, PG48-BRS, PG63-BRS, M12-BRS, M16-BRS, M18-BRS, M20-BRS, M22-BRS, M24-BRS, M25-BRS, M27-BRS, M30-BRS, M32-BRS, M36-BRS, M40-BRS, M48-BRS, M56-BRS, M63-BRS, M64-BRS, M75-BRS, M88-BRS - Cable range Φ(mm): 3-6.5, 4-8, 5-10, 6-11, 10-13, 13-18, 18-25, 22-32, 32-38, 37-44, 42-52, 65-70 - Thread outer diameter(mm): 12.5, 15.2, 18.6, 20.4, 22.5, 28.3, 37, 47, 54, 59.3, 70.8, 88 - Thread length(mm): 6, 7, 8, 9, 10, 15 - Thickness(mm): 3, 4, 5, 8 - Material: Brass with nickel plated - Airtight ring claw: UL approved nylon PA66 - O-ring sealing: NBR - Weathering rubber: EPDM - Operating temperature: -40℃ to +1000 ℃ - IP rating: IP68 (using O-sealing) Thread Product code cable range Φ(mm) thread outer diameter(mm) thread length(mm) thickess(mm) PG7 PG7-BRS 3-6.5 12.5 6 3 PG9 PG9-BRS 4-8 15.2 6 3 PG11 PG11-BRS 5-10 18.6 6 3 PG13.5 PG13.5-BRS 6-11 20.4 7 4 PG16 PG16-BRS 10-13 22.5 7 4 PG21 PG21-BRS 13-18 28.3 7 4 PG29 PG29-BRS 18-25 37 8 4 PG36 PG36-BRS 22-32 47 8 4 PG42 PG42-BRS 32-38 54 9 5 PG48 PG48-BRS 37-44 59.3 10 5 PG63 PG63-BRS 42-52 70.8 10 5 M12 X 1.5 M12-BRS 3-6.5 12 6 3 M16 X 1.5 M16-BRS 4-8 16 6 3 M18 X 1.5 M18-BRS 5-10 18 6 3 M20 X 1.5 M20-BRS 6-12 20 7 4 M22 X 1.5 M22-BRS 8-14 22 7 4 M24 X 1.5 M24-BRS 8-14 24 7 4 M25 X 1.5 M25-BRS 10-16 25 7 4 M27 X 1.5 M27-BRS 11-16 27 8 4 M30 X 1.5 M30-BRS 11-16 30 8 4 M32 X 1.5 M32-BRS 11-18 32 8 4 M32 X 1.5 M32-BRS2 18-25 32 8 4 M36 X 1.5 M36-BRS 14-21 36 8 4 M40 X 1.5 M40-BRS 16-25 40 9 5 M40 X 1.5 M40-BRS2 22-32 40 9 5 M48 X 1.5 M48-BRS 22-32 48 9 5 M56 X 1.5 M56-BRS 30-38 56 9 5 M63 X 1.5 M63-BRS 37-44 63 10 5 M64 X 1.5 M64-BRS 37-44 64 10 5 M75 X1.5 M75-BRS 42-52 75 10 5 M88 X1.5 M88-BRS 65-70 88 15 8
