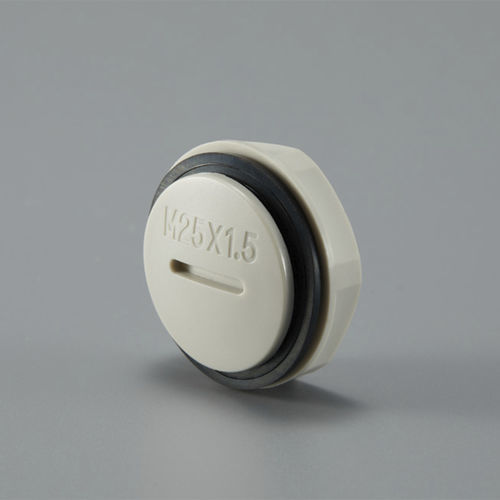

Round plug PG seriesthreadedmalenylon
Add to favorites
Compare this product
Characteristics
- Form
- round
- Type
- threaded, male
- Material
- nylon
- Function
- protection, vent
- Diameter
Min.: 12.5 mm
(0.492 in)Max.: 63 mm
(2.48 in)
Description
Nylon srew plugs
Materials: UL approved Nylon PA66(Flammability UL94V-2)
IP rating: IP68
Operating temperature: -40℃ to +100 ℃
Color: Black RAL9005
Thread Product code thread outer diameter(mm) thread length(mm)
PG7 PG7-PL 12.5 9.5
PG9 PG9-PL 15.2 9.5
PG11 PG11-PL 18.6 10
PG13.5 PG13.5-PL 20.4 11
PG16 PG16-PL 22.5 11
PG21 PG19-PL 28.3 11
PG29 PG21-PPL 37 12
PG36 PG25-PL 47 12
PG42 PG42-PL 54 12
PG48 PG48-PL 59.3 12
M12 X 1.5 M12-PL 12 9.5
M16 X 1.5 M16-PL 16 10
M20 X 1.5 M20-PL 20 11
M22 X 1.5 M22-PL 22 11
M25 X 1.5 M25-PL 25 11
M32 X 1.5 M32-PL 32 11
M40 X 1.5 M40-PL 40 12
M50 X 1.5 M50-PL 50 12
M63 X 1.5 M63-PL 63 12
