- YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD.

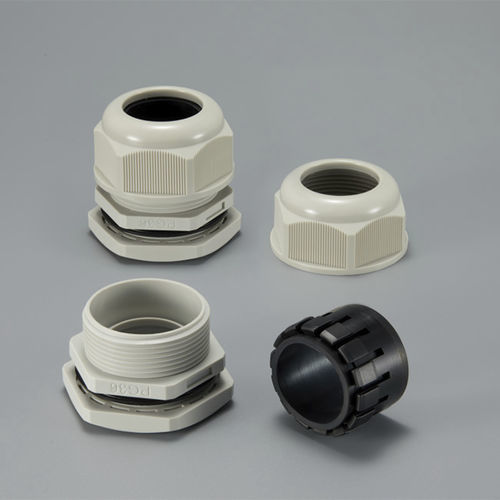

Nylon cable gland PG-PA seriesIP66PG thread
Add to favorites
Compare this product
Characteristics
- Material
- nylon
- Protection level
- IP66
- Other characteristics
- PG thread
- Cable diameter
Min.: 3 mm
(0.12 in)Max.: 44 mm
(1.73 in)- Thread diameter
Min.: 12.5 mm
(0.49 in)Max.: 59.3 mm
(2.33 in)
Description
Nylon cable gland- PG series
Materials: UL approved nylon PA66 (flammability UL94V-2)
O-ring washer,Airtight Ring: EDPM rubber
Color: RAL 7035 (white)
Operating temperature: -40℃ to +120 ℃
Thread Product code cable range Φ(mm) thread outer diameter(mm) thread length(mm) Standard package(pcs)
PG7 PG7-PA 3 - 6.5 12.5 8 50
PG9 PG9-PA 4-10 15.2 8.2 50
PG11 PG11-PA 5-10 18.6 10 50
PG13.5 PG13.5-PA 6-12 20.4 10 50
PG16 PG16-PA 10-14 22.5 10.8 50
PG19 PG19-PA 10-14 24 11 50
PG21 PG21-PA 13-18 28.3 12 50
PG25 PG25-PA 14-20 30 13 50
PG29 PG29-PA 18-25 39 12 20
PG36 PG36-PA 22-32 47 15 10
PG42 PG42-PA 32-38 54 15 10
PG48 PG48-PA 37-44 59.3 18.2 10
