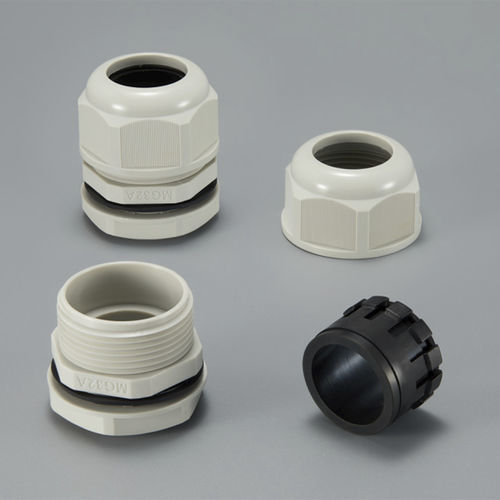

Nylon cable gland M seriesthreaded
Add to favorites
Compare this product
Characteristics
- Material
- nylon
- Other characteristics
- threaded
- Cable diameter
Max.: 90 mm
(3.54 in)Min.: 12 mm
(0.47 in)- Thread diameter
Max.: 90 mm
(3.54 in)Min.: 12 mm
(0.47 in)- Operating temperature
Max.: 120 °C
(248 °F)Min.: -40 °C
(-40 °F)
Description
Nylon cable gland- M series
Materials: UL approved nylon PA66 (flammability UL94V-2)
O-ring washer,Airtight Ring: EDPM rubber
Color: RAL 9005 (Black)
Operating temperature: -40℃ to +120 ℃
Thread Product code cable range Φ(mm) thread outer diameter(mm) thread length(mm) Standard package(pcs)
M12 X 1.5 M12-PA 3-5.5 12 8.5 50
M16 X 1.5 M16-PA 4-8 16 15 50
M20 X 1.5 M20-PA 6-12.5 20 10 50
M22 X 1.5 M22-PA 9-14 20 15 50
M25 X 1.5 M25-PA 13-18 25 10 50
M32 X 1.5 M32-PA 18-25 32 15 20
M40 X 1.5 M40-PA 24-31 40 20 10
M50 X 1.5 M50-PA 31-41 50 22 10
M63 X 1.5 M63-PA 39-46 63 25 10
M63 X 1.5 M63-PA2 44-51 63 25 10
M75 X 2.0 M75-PA 56-66 75 25 1
M90 X 2.0 M90-PA 66-77 90 25 1
