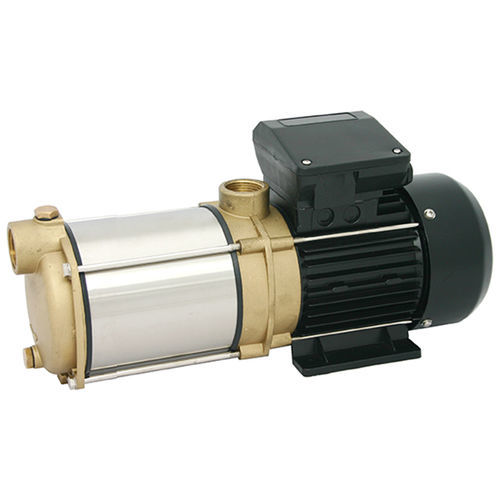

Water pump CPS 15-4 B
for clear waterwith electric motorself-priming

water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water, for clear water
Operation
with electric motor
Priming
self-priming
Technology
centrifugal
Mobility
stationary
Domain
industrial
Applications
discharge, suction
Material
cast iron, brass
Voltage
400 V, 230 V
Protection level
maintenance-free
Other characteristics
suction, multi-stage, reinforced
Flow

4 m³/h
(141.25867 ft³/h)

Head

Max.: 40 m
(131'02" )

Min.: 0 m
(0'00" )

Power

900 W
(1.22 hp)

Fluid temperature

40 °C
(104 °F)

Length

409 mm, 420 mm
(16 in, 17 in)

Width

134 mm, 190 mm
(5.28 in, 7.48 in)

Height

200 mm
(7.87 in)

Description

Self-priming, maintenance-free, multi-stage, horizontal centrifugal pump High efficiency Suction and pressure connectors, internal thread (1“ - 1¼“) CPS SM with ON/OFF-switch CPS GG / SM: Grey-cast iron suction and discharge case CPS B: Suction and discharge case made of α-brass resistant to dezincification Impellers made of fibre-glass reinforced Noryl® Application Domestic water supply Rainwater utilization Pressure boost Irrigation For clear water without aggressive and abrasive components Scope of delivery Completely wired including mains cable H07 RNF, 1.5 m long, with plug
