Flexible coupling SFC SA2 series
discpin and bushcompact

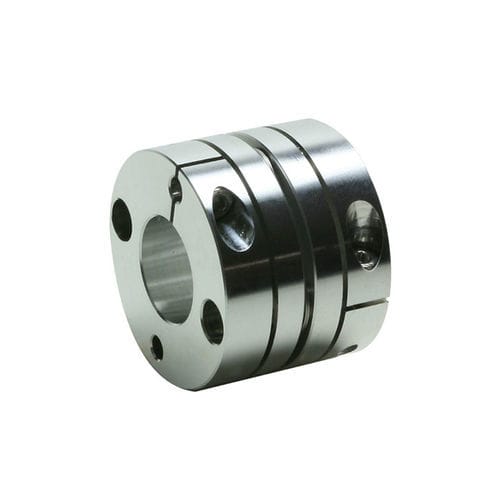

Flexible coupling - SFC SA2 series - ZERO-MAX Europe - disc / pin and bush / compact
Flexible coupling - SFC SA2 series - ZERO-MAX Europe - disc / pin and bush / compact
Flexible coupling - SFC SA2 series - ZERO-MAX Europe - disc / pin and bush / compact - image - 2
Flexible coupling - SFC SA2 series - ZERO-MAX Europe - disc / pin and bush / compact - image - 3
Add to favorites
Compare this product
Go to the ZERO-MAX Europe website for more information

Characteristics

Type
flexible, disc, pin and bush
Construction
compact, shaft-hub, miniature, aluminum, with clamp, with bore
Product applications
for servo motors, shaft, transmission, turntable, for rolling mills, for food, industrial, for the textile industry, for lathes, for mechanical power transmission, for medical devices, for the aerospace industry, horizontal operation, for stepper motors, for the packaging industry, for test benches, pharmaceutical products, for cleaners, for chemical applications, for machines, gearbox, for printing machines, for milling spindle, for robotics, for machine tools, for robots, for spindles, for paper machines, for the food industry, light-duty, for mixers
Performance
backlash-free, maintenance-free, high-performance, high-speed, non-lubricated
Other characteristics
torque, misalignment correction, custom-made, compensating, dry, variable-speed, high-position
Installation system
flange
Torque

Max.: 100 Nm
(73.756215 ft.lb)

Min.: 5 Nm
(3.687811 ft.lb)

Rotational speed

Max.: 10,000 rpm
(62,831.8531 rad.min-1)

10,000 rpm
(62,831.8531 rad.min-1)

Min.: 1 rpm
(6.2832 rad.min-1)

Description

The backlash-free Single Flex SA2 clean room version enables use in application areas with explicit surface treatment requirements (ISO class 6). The shaft coupling offers high torsional stiffness, combined with the ability to compensate axial and angular shaft misalignments. The single-cardanic design features low inertia and lightweight construction. Hubs made of high-strength aluminum alloy Low inertia Clean room suitable surface treatment (ISO class 6) High torsional stiffness RoHS compliant
