Flexible coupling SFC DA2 series
discpin and bushcompact

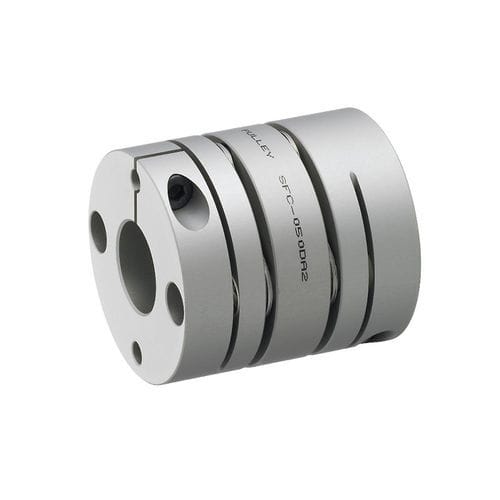

Flexible coupling - SFC DA2 series - ZERO-MAX Europe - disc / pin and bush / compact
Flexible coupling - SFC DA2 series - ZERO-MAX Europe - disc / pin and bush / compact
Flexible coupling - SFC DA2 series - ZERO-MAX Europe - disc / pin and bush / compact - image - 2
Flexible coupling - SFC DA2 series - ZERO-MAX Europe - disc / pin and bush / compact - image - 3
Flexible coupling - SFC DA2 series - ZERO-MAX Europe - disc / pin and bush / compact - image - 4
Add to favorites
Compare this product
Go to the ZERO-MAX Europe website for more information

Characteristics

Type
flexible, disc, pin and bush
Construction
compact, shaft-hub, double, miniature, aluminum, with spacer, with clamp, with bore
Product applications
shaft, transmission, for machine tools, for lathes, for mechanical power transmission, for stepper motors, for chemical applications, for the aerospace industry, for food, for electric motors, light-duty, for medical devices, for conveyor, for robotics, for spindles, for servo motors, for printing machines, horizontal operation, for machines, gearbox, for paper machines, with encoder, turntable, for the food industry, for the textile industry, for rolling mills, for the packaging industry, for test benches, for milling spindle, pharmaceutical products, for coordinate measuring machines, for robots
Performance
backlash-free, maintenance-free, high-performance, high-speed, non-lubricated
Other characteristics
torque, misalignment correction, custom-made, compensating, variable-speed, high-position
Installation system
flange
Torque

Max.: 250 Nm
(184.390537 ft.lb)

Min.: 0.25 Nm
(0.184391 ft.lb)

Rotational speed

10,000 rpm
(62,831.8531 rad.min-1)

Max.: 100,000 rpm
(628,318.5307 rad.min-1)

Min.: 1 rpm
(6.2832 rad.min-1)

Description

The Double Flex DA2 backlash-free servo lamina coupling features high torsional stiffness coupled with the ability to compensate for axial, parallel and angular shaft misalignments. The single-cardanic design is characterized by low inertia and its lightweight construction and is ideally suited for servo applications. Compensation of shaft misalignments (angular, axial, parallel) Low inertia Low reaction loads Identical in design to Zero-Max ServoClass RoHS compliant
