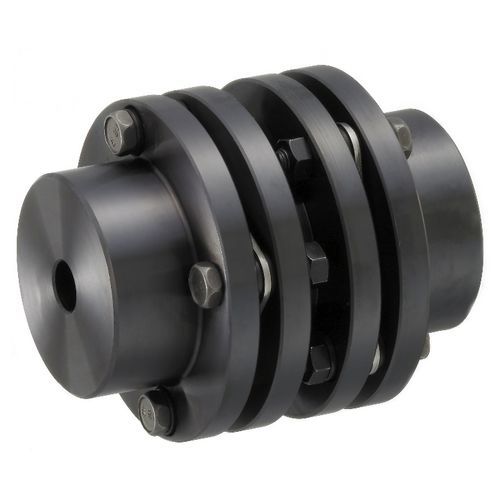

Double-disc coupling SFS G seriesflexiblepin and bushcompact
Add to favorites
Compare this product
Characteristics
- Type
- flexible, double-disc, pin and bush
- Construction
- compact, shaft-hub, with spacer, with bore
- Product applications
- for conveyor, transmission, for shafts, for mechanical power transmission, motor, for servo motors, machine tool, for paper machines, gearbox, machines, for heavy loads, for the packaging industry, for the textile industry, horizontal operation, turntable, for lathes, for spindles, for printing machines, for test benches
- Performance
- high-torque, zero-backlash, maintenance-free, high-performance, high-speed, non-lubricated, high load capacity
- Other characteristics
- torque, misalignment correction, compensating, variable-speed, disassemblable, high-position
- Installation system
- set screw
- Torque
Min.: 20 Nm
(14.751243 ft.lb)Max.: 800 Nm
(590.049719 ft.lb)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 20,000 rpm
(125,663.7061 rad.min-1)
Description
The double cardanic Double Flex design SFS consists of a high-strength steel base body and two disc packs. The high torsional stiffness results in an exact and precise power transmission. The SFS G model series offers the possibility of customized lengths.
Fastening by bore with keyway or clamping set
High torsional stiffness
Customized lengths possible
Parallel, angular and axial misalignment compensation
Torque range from 20 to 800 Nm
Available disassembled
