Double-disc coupling SFH G seriesflexiblegearpin and bush
Add to favorites
Compare this product
Characteristics
- Type
- flexible, double-disc, gear, pin and bush
- Construction
- compact, shaft-hub, with spacer, with bore
- Product applications
- for conveyor, transmission, for blowers, for shafts, for mechanical power transmission, for the packaging industry, motor, for machine tools, for servo motors, gearbox, for test benches, for paper machines, for lathes, for milling spindle, for machines, for the textile industry, for spindles, for mixers, for rolling mills, blower, turntable, for printing machines, for heavy loads, horizontal operation
- Performance
- high-torque, zero-backlash, maintenance-free, high-performance, high-speed, non-lubricated, high load capacity
- Other characteristics
- torque, misalignment correction, compensating, variable-speed, high-position
- Installation system
- set screw
- Torque
Max.: 8,000 Nm
(5,900.497194 ft.lb)Min.: 1,000 Nm
(737.562149 ft.lb)- Rotational speed
Max.: 5,900 rpm
(37,070.7933 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description

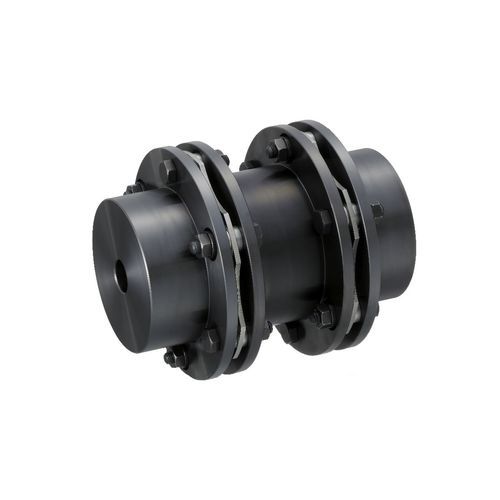

The double cardanic Double Flex design SFH consists of a high-strength steel base body and two steel disc packs. The very high torsional stiffness results in an exact and precise power transmission. With a maximum nominal torque of up to 8000 Nm, this design is suitable for the transmission of large torques.
Operating speed up to 5,900 rpm
Very high torsional stiffness
Bore range from ø22 mm to ø115 mm
Angular and axial misalignment compensation
Torque range from 1000 to 8000 Nm
Available disassembled
