Flexible coupling SFH S series
discpin and bushfor shafts

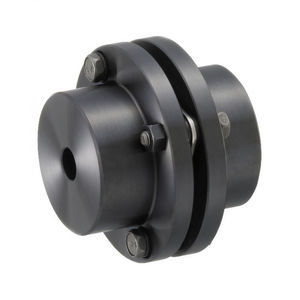

Flexible coupling - SFH S series - ZERO-MAX Europe - disc / pin and bush / for shafts

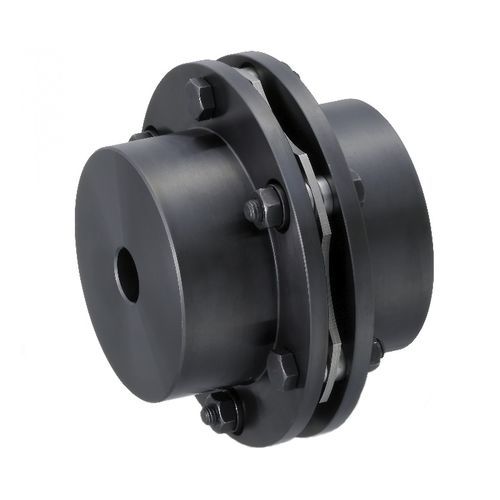

Flexible coupling - SFH S series - ZERO-MAX Europe - disc / pin and bush / for shafts
Flexible coupling - SFH S series - ZERO-MAX Europe - disc / pin and bush / for shafts - image - 2
Add to favorites
Compare this product
Go to the ZERO-MAX Europe website for more information

Characteristics

Type
flexible, disc, pin and bush
Product applications
for shafts, transmission, for mechanical power transmission, turntable, motor, horizontal operation, for milling spindle, for servo motors, for the packaging industry, for test benches, for spindles, gearbox, for machines, for the textile industry, fan, for lathes, for conveyor, for paper machines, for printing machines, for machine tools, for rolling mills
Construction
compact, shaft-hub, with bore
Performance
high-torque, zero-backlash, maintenance-free, high-performance, high-speed, non-lubricated, high load capacity
Other characteristics
torque, misalignment correction, compensating, variable-speed, disassemblable, high-position
Installation system
set screw
Torque

Max.: 8,000 Nm
(5,900.497194 ft.lb)

Min.: 1,000 Nm
(737.562149 ft.lb)

Rotational speed

Max.: 5,900 rpm
(37,070.7933 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Description

The single-cardanic Single Flex design SFH consists of a high-strength steel base body and a steel disc pack. The very high torsional stiffness results in an exact and precise power transmission. With a maximum nominal torque of up to 8000 Nm, this design is suitable for the transmission of large torques. Operating speed up to 5,900 rpm Very high torsional stiffness Bore range from ø22mm to ø115mm Angular and axial misalignment compensation Torque range from 1000 to 8000 Nm Available disassembled
