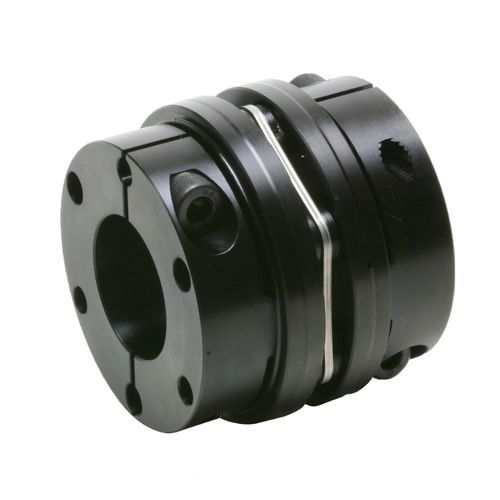

Flexible coupling SFM SS B seriesdiscpin and bushcompact
Add to favorites
Compare this product
Characteristics
- Type
- flexible, disc, pin and bush
- Construction
- compact, shaft-hub, with clamp
- Product applications
- for mechanical power transmission, transmission, for shafts, for paper machines, for spindles, for milling spindle, for coordinate measuring machines, motor, horizontal operation, for the packaging industry, for servo motors, gearbox, machines, for test benches, for the textile industry, for conveyor, for lathes, for rolling mills, turntable, for printing machines
- Performance
- high-torque, zero-backlash, maintenance-free, high-performance, high-speed, non-lubricated, high load capacity
- Other characteristics
- torque, misalignment correction, compensating, variable-speed, high-position
- Installation system
- flange
- Torque
Max.: 600 Nm
(442.53729 ft.lb)Min.: 60 Nm
(44.253729 ft.lb)- Rotational speed
Max.: 24,000 rpm
(150,796.4474 rad.min-1)Min.: 2 rpm
(12.5664 rad.min-1)
Description
The single cardanic single flex design SFM has been specifically developed for applications with high speed and a high grade of precision. The innovative design concept with six-fold bolted disc packs enables higher torsional stiffness. The increased torsional stiffness has a positive effect on operation at high speeds and required positioning accuracy.
Operating speed up to 24,000 rpm
Very high torsional stiffness
Highly concentric clamping hubs
Angular and axial misalignment compensation
Torque range from 60 to 600 Nm
High positioning accuracy
