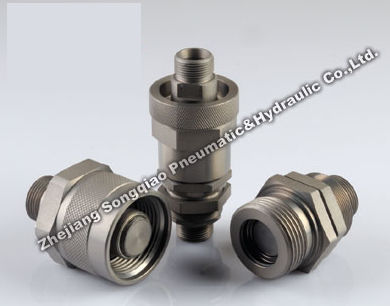

Hydraulic fitting LSQ-RK series

threadedquicksteel

THREAD LOCKED TYPE HYDRAULIC QUICK COUPLING(STEEL)(NEW) Application：Special vehicles and varieties of non-leakage of hydraulic applications. LSQ-RK Series Features： 1、 New valve design, it can resistance damage from high flow and the pressure of impulse that providing advanced performance 2、Special flush-face valve avoid spillage during connection and disconnection. 3、Machined from solid steel barstock for durability 4、The LSQ-RK series employs a threaded sleeve locking mechanism, mates with matching male threads on the coupler. The two halves must be manually threaded together form connection. 5、It can connect or disconnect with residual pressure up to 10MPa from both end. 6、New zinc nickel plating treatment provides advanced anti-rust performance. 7、A threaded valve retainer provides a valve stop that assures positive valve alignment. 8、Compatible with Stucchi VR Series、Voswinkel RK Series Test Oil -200SUS，1GPM=3.78L/Min,1PSI=0.0069MPa.
