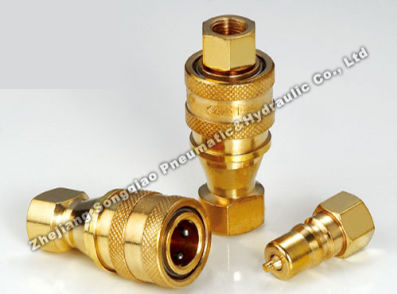

Quick coupling KZD series

pneumatichydraulicbrass

KZD couplings, are used across the spectrum of hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable. Primarily used with hydraulic fluid. KZD couplings are also used with chemicals, water, steam, and some gases. KZD Series couplings feature: 1.Poppet valves available to prevent uncoupled leakage. 2.Poppet valves open automatially when coupled within rated working pressure, to keep the flow expeditely. 3.Dependable ball-locking mechanism holds the mating halves together. 4.Socket and plug are precision machined from solid bar stock. 5.KZD series conforms to the standard ISO7241-B. 6.Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series. Performance: Test Fluid:Oil-150SUS. Performance:(3/4"&1)Test Fluid:Oil-150SUS, (11/4",11/2",2")Test Fluid:Oil-200SU1GPM=
