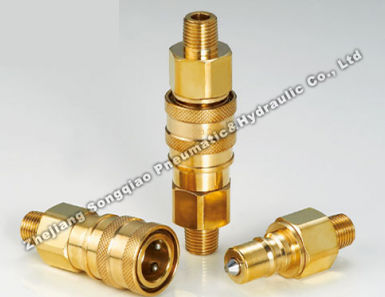

Quick coupling LSQ-S8 series

pneumatichydraulicbrass

LSQ-S8 couplings,are used across the spectrum of hydraulic applications,These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment,and a loss of fluid is undesirable.LSQ-S8 are used on construction Equipment,forestry equipment,agricultural Machinery,oil tools,steel mill machinery,and other demanding hydraulic applications. LSQ-S8 Series Couplings feature: 1.Poppet valves available to prevent uncoupled leakage. 2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely. 3.Dependable ball-locking mechanism holds the mating halves together. 4.Socket and plug are precision machined from solid bar stock. 5.LSQ-S8 series conforms to the standard of ISO 7241-B. 6.Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series Performance: Test Fluid:Oil-200SUS.1GPM=3.78L/Min,1PSID=0.0069MPa.
