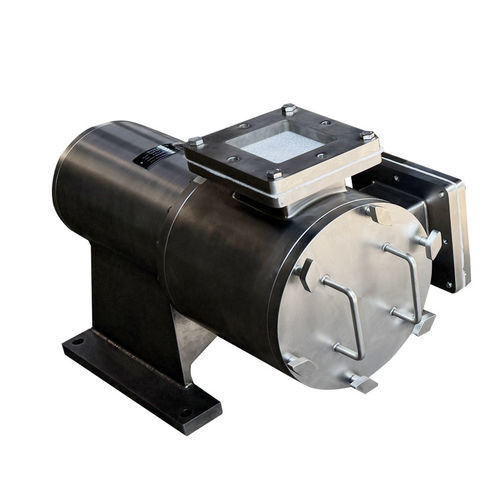

Food product pump TS-SP-3electricstationaryindustrial
Add to favorites
Compare this product
Characteristics
- Fluid
- for food products
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial
- Applications
- suction, transfer, discharge, work, dosing, sewage, cleaning, washing, chemical process, extraction
- Other characteristics
- sine wave
- Flow
Min.: 3 m³/h
(105.944 ft³/h)Max.: 90 m³/h
(3,178.32 ft³/h)- Pressure
0.85 bar, 10 bar
(12.328 psi, 145.038 psi)- Head
Min.: 10 m
(32'09" )Max.: 30 m
(98'05" )- Power
Min.: 1.5 kW
(2.04 hp)Max.: 15 kW
(20.39 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 100 °C
(212 °F)- Input diameter
Min.: 1 in
Max.: 6 in
- Output diameter
Min.: 1 in
Max.: 6 in
Description
Principle The single sinusoidal rotor creates four evenly sized chambers as it rotates.
Fluid is pulled through the inlet into each chamber in turn.
The chamber rotates, contracts, closes then discharges the fluid packages through the outlet port.
The opposite chamber opens to draw in more fluid, resulting in a smooth flow with virtually no pulsation.
A gate functions as a seal between the inlet and outlet of the pump, preventing fluid escaping Feature:
1.Ultra-low shear conveying to effectively ensure media integrity
2.High suction capacity, inlet negative pressure can reach -0.8bar
3.Low-pulse conveying can Smooth transportation
4.Special impeller design for easy cleaning Configuration Triple lip seal
5. Insulation jacket, suitable for heating or cooling
6. Mechanical seals: single-end face or double-end face mechanical seals
7. Equipped with a sanity-grade stainless steel protective cover
8. Equipped with a mobile trolley
9. Equipped with a control box and frequency converter
10. Equipped with variable frequency motor and explosion-proof motor
Fluid is pulled through the inlet into each chamber in turn.
The chamber rotates, contracts, closes then discharges the fluid packages through the outlet port.
The opposite chamber opens to draw in more fluid, resulting in a smooth flow with virtually no pulsation.
A gate functions as a seal between the inlet and outlet of the pump, preventing fluid escaping Feature:
1.Ultra-low shear conveying to effectively ensure media integrity
2.High suction capacity, inlet negative pressure can reach -0.8bar
3.Low-pulse conveying can Smooth transportation
4.Special impeller design for easy cleaning Configuration Triple lip seal
5. Insulation jacket, suitable for heating or cooling
6. Mechanical seals: single-end face or double-end face mechanical seals
7. Equipped with a sanity-grade stainless steel protective cover
8. Equipped with a mobile trolley
9. Equipped with a control box and frequency converter
10. Equipped with variable frequency motor and explosion-proof motor
