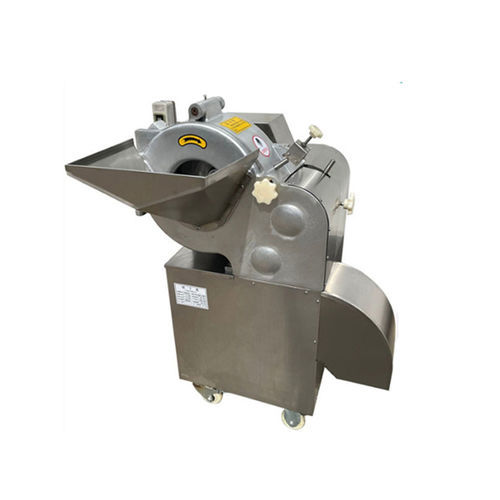

Vegetable fruit and vegetable cutting machine QD series

for fruitdicesstainless steel

Introduction:
Three-dimensional fruit and vegetable dicer (3D vegetable fruit dicing machine) designed to cut root and stem vegetables and fruits into uniform cube or cuboid shapes. Intended for use in dehydrated product lines, IQF (individually quick frozen) processing and pickling operations within food-processing plants.

Applications:

• Dehydrated vegetables and fruits production
• Quick-frozen (IQF) processing lines
• Pickling and prepared-food processing
• Integration into automated production lines for portioning and pre-processing

Advantages:

• Compound cutter formed in a single pass for consistent geometry and clean cut surfaces
• Simple operation with low energy consumption and efficient throughput
• Main construction in SUS304 stainless steel and aluminium alloy for corrosion resistance and compliance with sanitary requirements

Feeding port:
The enlarged feeding port facilitates loading and handling, and the unit is suitable for inline integration with conveyors and upstream processing equipment.

Dicing specification:
This machine cuts stems, root vegetables and fruits into cubes or cuboids with sizes of 3, 4, 5, 6, 8, 10, 12, 15, 20, 25 mm. Special sizes can be manufactured on request by changing blade sets.

Technical specifications:

• Model: QD70
• Size (QD70): 680*630*980 mm
• Main material: SUS304 / Al alloy
• Cutting shape: Cubes / cuboids
• Cutting size: 3–25 mm (by changing blade sets)
• Power (QD70): 0.75 kW
• Voltage (QD70): 220V/380V, 50Hz/60Hz (or others)
• Capacity (QD70): 300–400 kg/hour
• Model: QD90
• Size (QD90): 890*710*1260 mm
• Power (QD90): 0.75 kW
• Voltage (QD90): 380V, 50Hz/60Hz (or others)
• Capacity (QD90): 500–800 kg/hour
• Origin: Made in Taiwan
• Warranty: One year

Options & customization:

• Custom blade sets for non-standard sizes or shapes
• Voltage and electrical configuration to suit local requirements
• Adaptations for integration with specific conveyor profiles or upstream equipment

Warranty & after-sales:
One-year warranty. Spare parts and technical support available for integration and maintenance.
