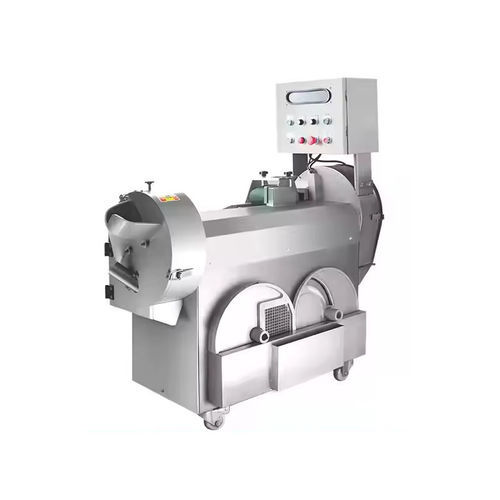

Vegetable vegetable cutting machine SQ120for foodpotatoonion
Add to favorites
Compare this product
Characteristics
- Food product
- potato, for vegetables, celery, onion, for leek, for leafy greens, for food
- Type of cut
- julienne, round slices, stick, dices
- Other features
- automatic, stainless steel
Description
Main specifications:
Introduction:
Typical processed products:
Technical specifications:
- Model: SQ120
- Overall size: 1180 x 560 x 1260 mm
- Power: 2.75 kW
- Width of conveyor: 120 mm
- Voltage: 220V/380V, 50Hz/60Hz (or others)
- Main material: SUS 304 stainless steel / Al alloy
- Cutting shape: shreds, slices, cubes, julienne
- Cutting size: 2–6 mm (slices, julienne); 8 / 10 / 12 / 15 / 18 / 20 / 25 mm (cubes); 1–60 mm (shreds)
- Capacity: 500–1000 kgs/hr
Introduction:
- The multi-functional double-head vegetable cutter is constructed in SUS 304 to meet food-grade hygiene and sanitation requirements.
- Each head is optimized for different vegetable types: one end for leafy and stem vegetables (e.g., green onions, leeks, celery), the other for root vegetables and selected fruits (e.g., radishes, potatoes, sweet potatoes, onions).
- Exchangeable blades and adjustable guides allow slicing, shredding, dicing and julienne cuts; cutting dimensions can be customized to production needs.
- Conveyor belt speed and blade rotation for leafy vegetables are adjusted via frequency converters to ensure consistent cut quality and throughput.
Typical processed products:
- Leafy/stem vegetables: green onions, leeks, celery
- Root vegetables and fruits: radishes, potatoes, sweet potatoes, onions, selected fruits
Technical specifications:
- Model: SQ120
- Dimensions: 1180 x 560 x 1260 mm
- Power: 2.75 kW
- Conveyor width: 120 mm
- Voltage options: 220V / 380V; 50Hz / 60Hz; other voltages available
- Materials: SUS 304 stainless steel and aluminum alloy
- Cutting modes: slices, shreds, cubes, julienne
- Cut sizes: slices/julienne 2–6 mm; cubes 8/10/12/15/18/20/25 mm; shreds 1–60 mm
- Capacity range: 500–1000 kg/h
- Controls: frequency converter for conveyor and blade speed adjustment
