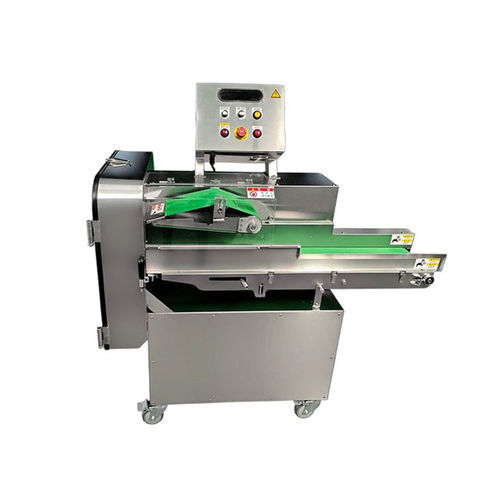

Vegetable vegetable cutting machine DC32

for fruitcarrotcelery

Introduction: Conveyor-belt vegetable cutting machines DC32 and YC200 are designed for continuous processing of leafy, stem and root vegetables and selected fruits. They integrate feeding, cutting and discharge on a sanitary stainless-steel frame with adjustable cutting sizes and knife configurations to fit industrial processing lines.

Main Specifications - Model: DC32

• Model: DC32
• Overall size: 1300*600*1080 mm
• Power: 1.1 kW / 1.5 kW
• Main material: Stainless steel
• Conveyor width: 317 mm / 500 mm
• Cutting size: 1-60 mm
• Conveyor material: Rubber
• Capacity: 400-600 kgs/hr
• Applications: Leafy, stem and root vegetables, herbs

Main Specifications - Model: YC200

• Model: YC200
• Overall size: 1400*650*1520 mm
• Power: 2.25 kW
• Main material: Stainless steel
• Conveyor width: 200 mm
• Cutting size: 1-100 mm
• Conveyor material: Rubber
• Capacity: 1000-1500 kgs/hr
• Applications: Leafy, stem and root vegetables, herbs

Features / Benefits:

• Accurate cutting with minimal length variation to meet portioning requirements
• Uniform slice thickness preserving cellular structure for improved product quality
• High throughput with low energy consumption suitable for continuous lines
• User-friendly operation, hygienic design and safety guards for food processing environments
• Adjustable cutting sizes and knife configurations for slices, shreds and chips

Applications:

• Leafy vegetables (lettuce, cabbage, spinach)
• Stem vegetables (celery, asparagus)
• Root vegetables (carrot, radish, sweet potato)
• Certain fruits suitable for slicing
• Herbs and leafy ingredients

Technical specifications:

• Available models: DC32, YC200
• Construction: Stainless steel frame and housing; rubber conveyor
• Cutting size range: DC32: 1-60 mm; YC200: 1-100 mm
• Conveyor widths: DC32: 317 mm / 500 mm; YC200: 200 mm
• Power options: DC32: 1.1 kW / 1.5 kW; YC200: 2.25 kW
• Overall dimensions: DC32: 1300*600*1080 mm; YC200: 1400*650*1520 mm
• Capacity: DC32: 400-600 kgs/hr; YC200: 1000-1500 kgs/hr
• Typical uses: cutting, chipping, shredding leafy, stem and root vegetables and selected fruits
