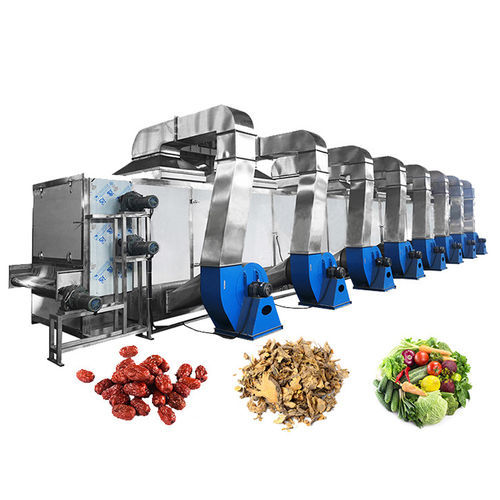

Hot air drying tunnel

for the food industry

Main specifications:

• Size: Customized
• Conveyor belt: Width 1000–1800 mm, SUS304 stainless steel mesh belt
• Speed control: Frequency converter
• Main material: SUS304 stainless steel
• Layers: 3 or 5
• Temperature: 45℃–99℃
• Power: Customized
• Dehumidification fans: Included
• Circulating fans: Included
• Heating type: Steam or electric
• Applications: Root vegetables, leafy vegetables, melon vegetables, legumes, edible mushrooms, fruits, Chinese medicinal herbs

Introduction:
The fruit and vegetable mesh belt dryer is a continuous hot-air drying system that conveys products on SUS304 stainless steel mesh belts while controlling temperature and humidity by zones. It enables large-scale, standardized drying of sliced, strip-shaped or granular agricultural products with continuous operation, uniform drying and adaptable process configuration. The machine is suitable for commercial food-processing lines and post-harvest drying operations.

Technical specifications:

• Model / Commercial name: CBD-Series Continuous Belt Dryer
• Construction: SUS304 stainless steel
• Conveyor width options: 1000–1800 mm
• Belt type: SUS304 stainless steel mesh belt
• Control: Frequency converter for belt speed control
• Layer options: 3-layer or 5-layer configuration
• Temperature range: 45℃–99℃
• Heating options: Steam heating or electric heating
• Fans: Dehumidification fans and circulating fans provided
• Power: Customized according to configuration
• Suitable product forms: Slices, strips, granules (fruits and vegetables)
