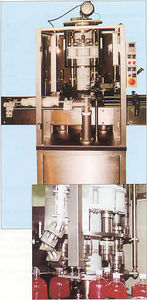

ROLLING AND CAPPING MACHINE
- Rolling and capping machine for aluminum,, tin-foil and poly laminate caps.
- It can be supplied with a pre-sleeking unit.
- The capping machine can be applied on automatic machines.
- Cap sizes: max diameter 38 mm max length 65mm 55mm with pre-sleeking
- Motor rotation speed. 1400 or 2800 r.p.m.
- Electrical requirements: 220V -380 V - 50 Hz. (different ones on request)
|
|

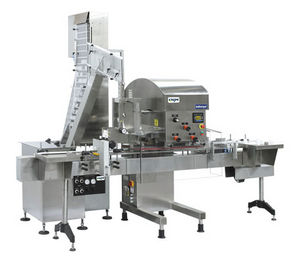

The BeltStar™ automatic inline capper and retorquer is the biggest step forward of the last two decades! With its repeatable, electronically controlled final torque, (Set it & forget it).
The BeltStar has a gentle smooth torque application. Very simple setup, no change parts, no compressed air requirements. Speeds up to 300 BPM*.
|
|
CAPPING-ASSEMBLING MACHINE MODEL RFC8C
It is designed for HI-SPEED reaching to over 18.000 bottles per hour.
It has been designed for capping the container or assemble 2 or more pieces together.
Within some typical applications we find injectable product into vials.
The standard machine includes:
- Container feeding and discharge by conveyor or tray.
- Set of star wheel and timing infeed screws designed to handle the bottles.
- Automatic closures feeding and placing onto bottle.
- Set of capping heads.
- Safety guards with interlock micro-switches at doors.
- Strong and solid machine frame, adjustable in height and provided of feet with pads.
- Driving group with electronic adjustable speed.
- Electrical plant with control panel provided of display for messages and suitable controls.
|
|
The Fogg 700 Series features Set-N-Place technology to place the cap on the bottle. This technology is used to support the neck throughout the capping process in light weight PET to eliminate paneling.
- Caps up to 30 containers per capping head, per minute
- Caps sport caps and flat caps with sizes ranging from 24mm -89mm
- Caps PET, HDPE or glass bottles with ease
- Rapid changeover for less down time
- Available in stand-alone or monobloc configurations
- Magnetic capping heads apply smooth constant torque not "pole to pole" ratcheting like many others
- Large turret diameter allows for versatility and efficiency
- Hardened barrel cam provides precise motion, control, and longevity to spindle linear motion
- VFD-controlled spindle drive for maximum flexibility
- Optional electronic positioning for precise height control from changeover to changeover
|
|
|
In production we handle containers and caps - easy and up-to-date cap combinations - reliably and economically. Due to the modular machine design in transport, drive and capping technology we can always have the machine accept most of the individual requirements economically and most flexibly.
|
|

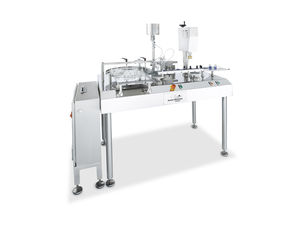

Macofar Intermittent Motion Capping Machine
The CSP 6 is an intermittent motion capping machine. The vials infeed and outfeed at the Macofar automatic capping machine is done by a conveyor belt in polyurethane. That guarantees a correct transport of any vial according the table on the left.
The vial position fixing during the closing is assured by self centering grippers.
Standard execution:
- all machine functions controlled by PLC
- check of cap presence with possibility of automatic rejection
- machine speed control vÃa inverter
- safety and protection hood- according to GMB guidelines
|
|
|
|
|
|

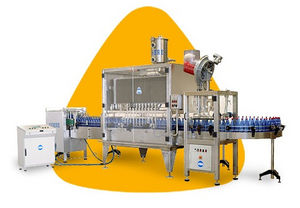

Automatic capper with automatic cap feeding.
The inline configuration does not require any turning star wheel for the bottles, thus making the equipment particularly flexible and adaptable to different bottle sizes. In this way the bottle changeover costs are reduced while guaranteeing the automation of the closing system and the achievement of a high production speed.
Ideal model for:
- Middle-sized to high productions (production will be proportional to the chosen configuration);
- handling very diversified bottle sizes with no additional costs; ideal also for the automatic capping of jerry cans./tanks;
- specific needs for a flexible and versatile machine which can simply be adapted - at reduced costs - through supplementary changeover tools
- changeover to be executed in maximum 10 minutes
The Ro Capper basic configuration is provided with the following modules
- Clutched magnetic capping head with cap jaw in Vulkolan® provided in conformity with the cap styles to be handled. Easily replaceable when changing over to a new cap size.
- Pick & Place system (if required) to transport the cap from the chute to the capping head.
- Automatic cap distributor with vibrating bowl, cap delivery chute and adjustable capping turret. The vibrating bowl is provided with soundproof hood in order to keep the noise level below 80dB.
- Manual height adjustment in order to suit to different bottle sizes All components are manufactured in AISI 304 or 316; all plastic materials are FDA-certified.
|
|
Up to 36,000 containers per hour,
With the quality of manual capping
|
|
The PRESS-ON CAPPER is a linear machine used for caps applied on the bottle by pressure. It includes:
- Cap hopper
- Canal chute
- Placing system of cap on the neck
- Device to snap the cap on the neck
- Specific systems to sterilize the caps in order to avoid the contact of contaminating agents present on the cap with the bottle neck
The bottle takes the cap directly from the canal chute.
The snapping of the cap on the bottle neck is carried out through the pressure developed by a belt conveyor, provided with a system to adjust the force in order not to stress the bottle.
|
|
Our product line consists of proven technology including PneumaticScaleAngelus' Pneumacapper and Consolidated Capem Cappers. We also offer a wide variety of sorters to accommodate any size and shape.
-Proven technology from PneumaticScaleAngelus including Consolidated's Capem Cappers
-Reliable, minimal-maintenance, highly versatile capping solutions from the industry leader in packaging automation
-Widest range of cap and containers with maximum speeds of 750 CPM
-Superior customer service and technical support
|
|
The capping station is composed of a column where the cap distributor, the chute with the releasing head and the capping heads are installed.
The screw capping machines are manufactured in two versions:
PPV for pre-threaded plastic screw caps with a positive Pick&Place system. The capping station is equipped with closing heads having a magnetic friction to adjust the closing force and are hermetically sealed to prevent water or stream ingress.
VA for aluminium screw caps with direct pick system. The capping station is equipped with closing heads in stainless steel, complete with rolls that seal the cap to the container (ROP or ROPP).
In the event of no container, the head doesn't release the cap.
The caps distributor automatically and continuously feeds the chute and it is equipped with a no cap sensor.
In case the machine has to treat PET/PE/HDPE bottles, the filler can be equipped with a neck holding system.
|
|
The electronic screw capper stands out because of its operating simplicity and precision.
- The system doesn't require stars, mechanical clutches, or complex lifting mechanisms.
- The closing torque can be set from touch screen; the vectorial frequency converter allows to manage it with high precision.
- The handling parts to move the bottle in the machine are reduced to the minimum, so as the change-over downtimes.
|
|
